Quad tubes GPNVG-18 pro

  • MODEL: LDNV018
  • BODY COLOR: Black or customized
  • SERVICE: OEM and ODM
  • CUSTOMIZE: LOGO and PACKING BOX
  • WARRANTY: 2 YEARS

This is our second Ground Panoramic Night Vision Goggles which is upgrade based on the first one, is called GPNVG -18 pro, it has 3 main upgrades:



1. Weight low to 780g, old one weight 880g;
2. New optical system with lower optical distortion;
3. Longer eye relief to offer better eye effect;

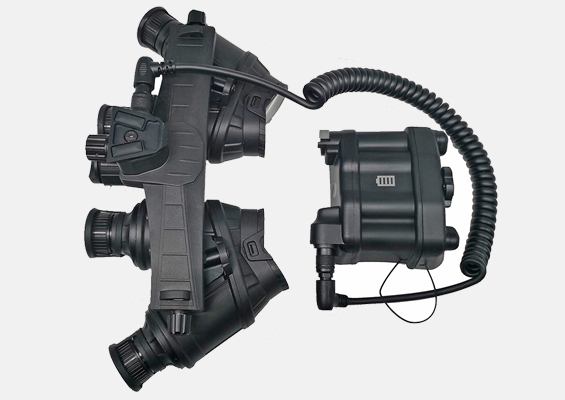

We offer the GPNVG 18 housing kit and complete device with battery packs, it can fit MX-10160 tube or other same size tube, tube drawing as below image

Night vision monocular drawing

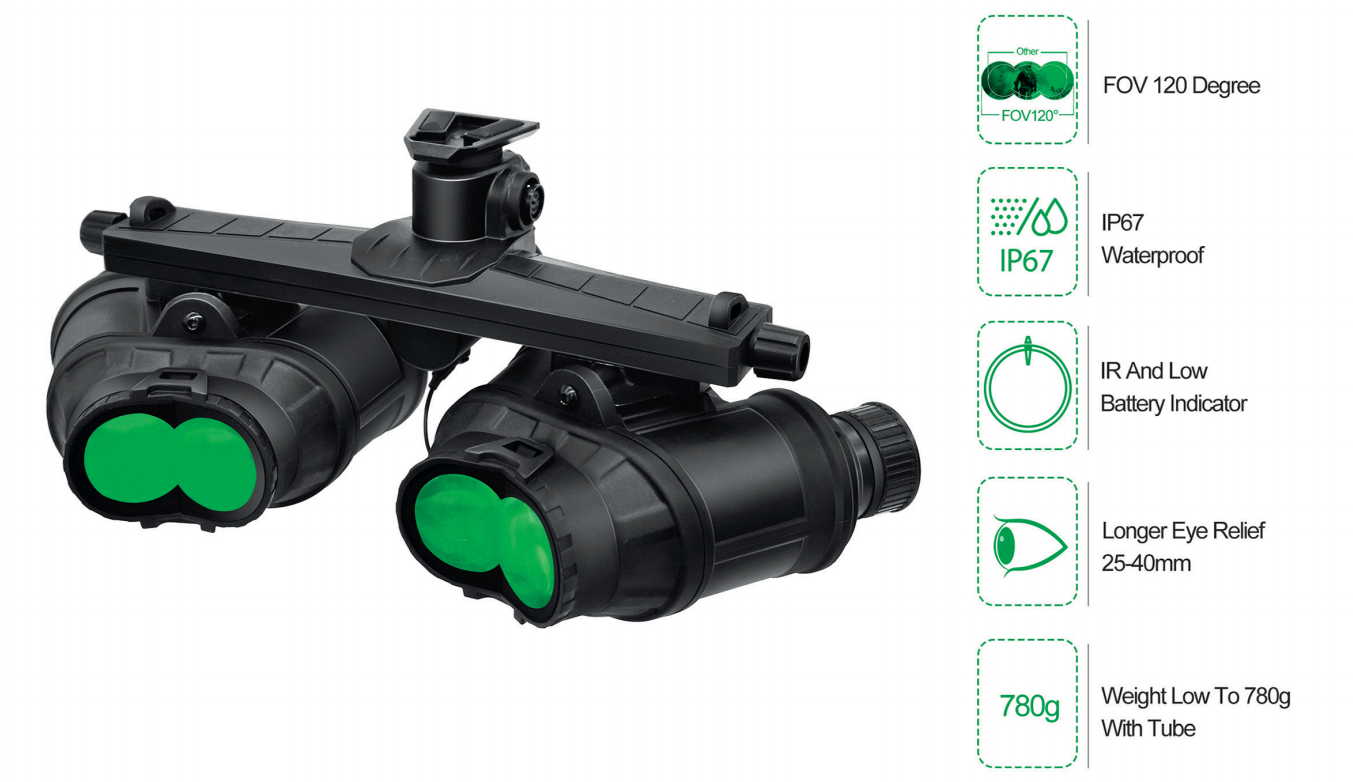

Main features:

1. FOV 120 degree
2. Diopter adjusting wheel
3. Battery packs and wire included
4. Build in IR flashlight
5. Low battery indicator
6. IR light ON/OFF indicator
7. Housing offered
8. Weight low to 780g
9. Lower optical distortion



The full body made by high quality plastic military standard quality, the tubes easy to buy at North American and European, please send inquiry through below contact form, you will got reply in 12 hours. Thanks



Introduction

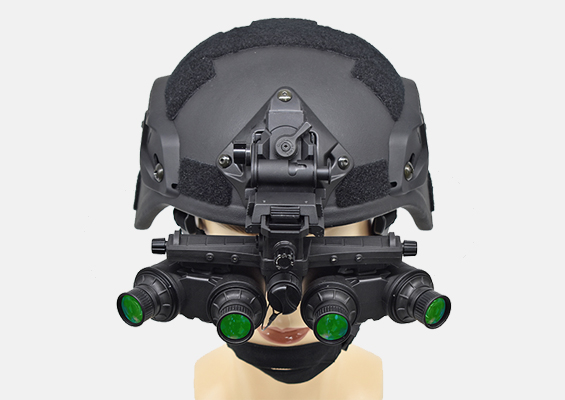

With the new technology, Lindu Optics developed a new Ground Panoramic Night Vision Goggles which called LDNV018 GPNVG, The purpose of the GPNVG is to provide the operator more information under goggles, allowing him to more quickly move through the OODA Loop (Observe, Orient, Decide, Act). The most striking feature of the GPNVG is the presence of four separate image intensifier tubes with four separate objective lenses arrayed in a panoramic orientation.

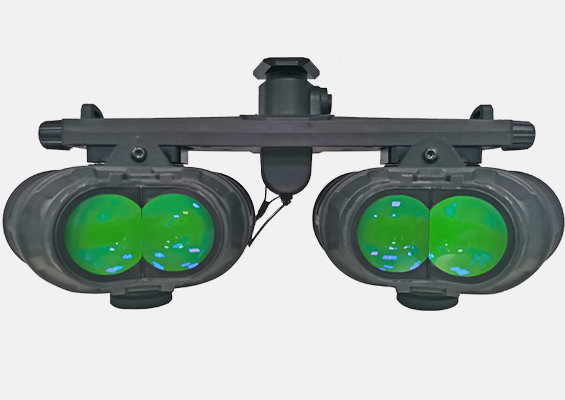

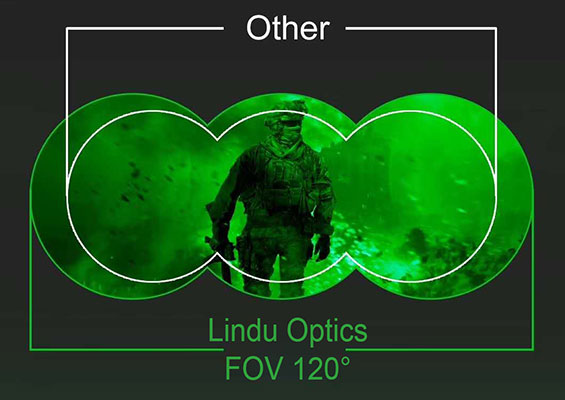

The center two lenses point forward like traditional dual-tube goggles, giving the operator more depth perception, while two more tubes point slightly outward from the center to increase peripheral view. The two tubes on the right and the two on the left are spliced at the eyepieces. The operator sees the two center tubes somewhat overlapping the two outer tubes to produce an unprecedented 120° FOV. This is an absolute game-changer for the SOF community.



The two right and two left tubes are housed in merged assemblies and are hung from a bridge, giving operators interpupillary adjustment options. They can also be easily removed and operated as independent handheld viewers. The IPD of the two system can be adjusted on the helmet mount.

  • Image intensifier Gen2+ / gen 3
    Magnification 1X
    Structural mode 4 eyed GPNVG
    Installation Head mounted
    Battery type Lithium battery (CR123Ax1)
    External battery packs (CR123Ax4)
    Voltage range 2.6-4.2V
    Control type ON/IR/AUTO
    FOV(degree) Horizontal 120+/-2 °
    Vertical 50 +/-2 °
    Power <0.2W
    Battery capacity 800-3200maH
    Continue working time 30-80H
    Parallelism of optical axes <0.1°
    Optical aperture F1.18 22.5mm
    Optical MTF 120LP/mm
    Optical distortion 2% Max
    Relative Illumination >75%
    Lens coating FMC
    Focus range 0.25M–∞
»
