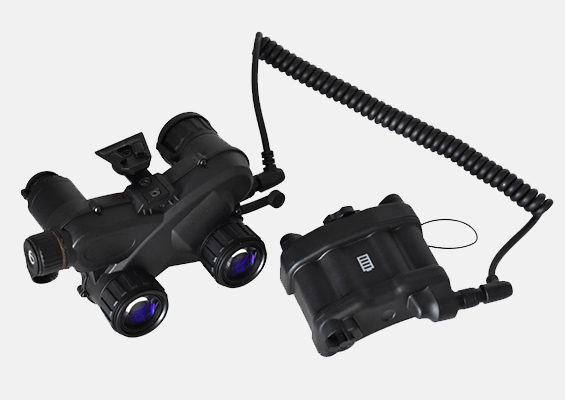

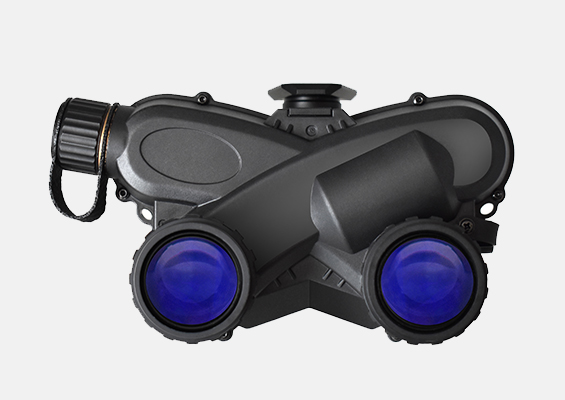

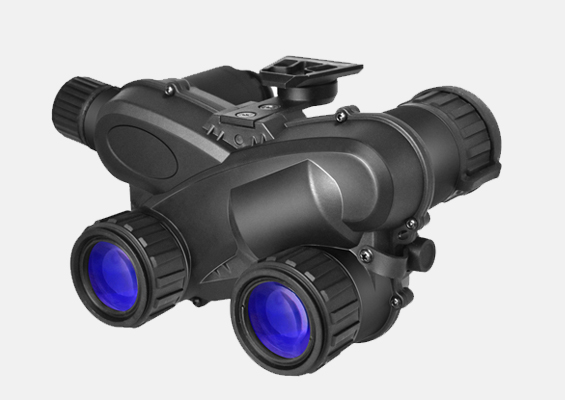

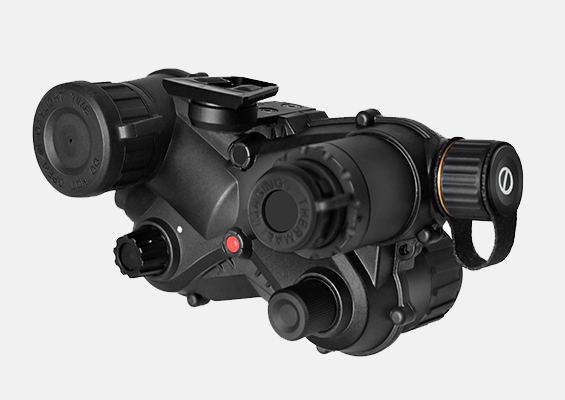

NV Fusion Thermal Imaging Goggles LD-NVG22T

  • BODY COLOR: Black

LD-NVG22 is a high-performance military head mounted night vision goggles built by Lindu Optics. Its design is different with traditional night vision device, it use folding optical path system, move the center of gravity backwards, reduced the weight on the neck by 50%.


It has the characteristics of super large field of view, high definition, no distortion, light weight, high strength , which is the ideal choice for military night equipment.


It fusion the thermal imaging mold together, which is more stable than a COTI on night vision, both function operated seperately, it is the highest cost effective fusion night vision in the world market.




1.FOV 50 ° and FOV 40°(optional) ,We are the only that can achieve FOV 50° .

2. Special design, adopted folding light path and veneer design, low cross section structure.

3.High-fidelity image, and no distortion in the observation screen.

4. Built-in working indicator, keep abreast of the using status.

5. With low light, low light thermal fusion, low light plus video input, low light plus ranging 4 versions.

6.In the auto mode, the IR is adjusted by environment brightness.

7.Long and short IR light can be selected.

8. Self-developed special materials, high strength, high temperature resistance, light weight, and battery radiation resistance.

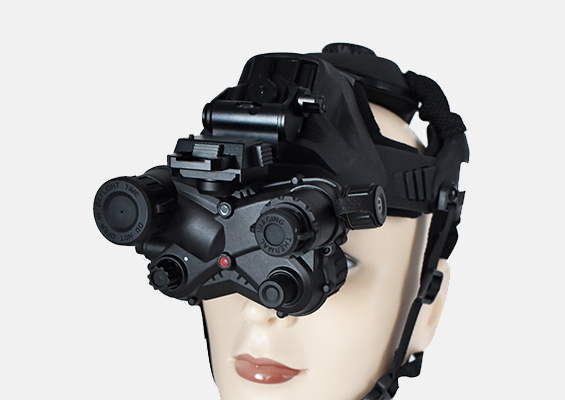

9. Center of gravity back, close to the face, head wear comfortable, lightweight to wear

10. We achieved Flip up down ON/OFF and side up down ON/OFF. (must use the original Lindu mounts).

11. Universal battery design, both CR123 battery and AA battery can be used.

12. The waterproof can reach IP65/IP67.

13. Thermal imaging function is easy to use , one-button switch, easy to operate.

14. Large FOV thermal imaging (thermal imaging maximum FOV 50 ° ), thermal imaging and low-light full-screen fusion.


Image intensifier Gen2+/gen3
Magnification 1X
FOV(degree) 50+/-2  (40 optional)
Optical distortion 0.5% Max
Infrared Illuminator Built-in(850nm 20mW)
Diopter range ±5
Optical system F1.1, 25mm
Lens coating Fully multilayer broadband coating
Distance range(M) 0.25–∞
Eye relief 30-35mm
Excit pull diameter 9mm
Size(No eyeshade) 80x132x81mm
Display resolution 1280×720
Weight (no battery) 450g
Battery Voltage 1.2-1.6/2.5-4.2
Battery type CR123A(1) / CR23A(4)external battery packs
Relative Illumination >75%
Temperature range(℃) -40/+50
Humidity range 5%-95%
Waterproof IP65(IP67 optional)

Thermal imaging module parameters

Type of sensor Unrefrigerated long wave infrared thermal radiometer
Detector resolution 384×288
Applicable wavelength 8-12um
Objective lens focal length fixed-focus
Objective aperture F1.0
Brightness Adjustable
Focusing distance 250mm~∞
Image mode White heat/black heat/green bottom/red/hook edge
Detection distance: (1.7M people) Detection range: 450M Identification range: 350M
