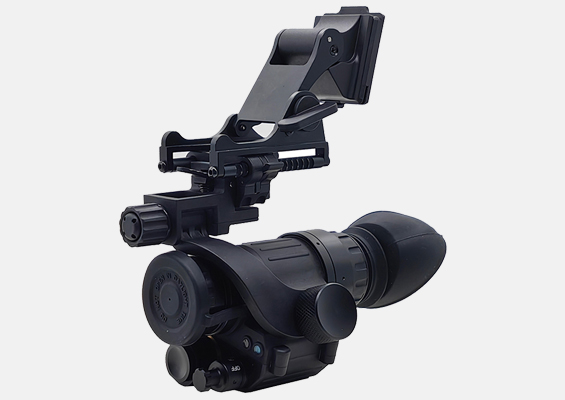

LD-NVM14 night vision monocular, with high-strength engineering plastic housing, lightweight and strong structure meets international performance standards. Equipped with 30mm eyepiece and F1.2 25mm aperture, almost no distortion. Together with our J-arm and mount, it has flip up AUTO SHUT OFF and flip down AUTO TURN ON function.
The product has strong practicability and can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. It is equipment for public security departments, armed police forces, special police forces, and guarding patrols.
It fit MX-10160 tube or other same size tube. MX10160 gen2+ (Standard) or gen3 night vision image intensifier tubes are available in green and white phosphor.
| Gen2+ Image intensifier tube | ||||
|---|---|---|---|---|
| FOM | FOM1400+ | FOM1600+ | FOM1800+ | FOM2000+ |
| SNR(dB) | ≥23 | ≥25 | ≥28 | |
| Resolution(lp/mm) | ≥60 | ≥64 | ≥68 | |
| Gain(cd/m²/lx) | 8000-12000 | 12000-20000 | ||
| Gen3 Image intensifier tube | ||||
| FOM | FOM1200+ | FOM1400+ | FOM1600+ | FOM1800+ |
| SNR(dB) | ≥22 | ≥25 | ≥28 | |
| Resolution(lp/mm) | ≥51 | ≥55 | ≥60 | ≥64 |
| Gain(cd/m²/lx) | 8000-20000 | 11000-20000 | 12000-20000 | |
| Electric | ||||
| Battery type | CR123/AA | |||
| Voltage range | 1.5-4.2V | |||
| Switch model | ON/IR/AUTO | |||
| Power | ＜0.1W | |||
| Auto function | Filp up/down | |||
| Working time | 80-200H | |||
| IR illuminator | 850nm 20mW | |||
| IR indicator | Yes | |||
| Optical | ||||
| Magnification | 1X | |||
| FOV | 40+/-2° | |||
| Optical distortion | 0.5% Max | |||
| Diopter range | -6 to 4 or -4 to 6 | |||
| Optical system | F1.18 22.5mm | |||
| Focus range(M) | 0.25–∞ | |||
| Eye relief | 25-40mm | |||
| Optical MTF | 120LP/mm | |||
| Structure | ||||
| Focus type | Manual | |||
| Temperature range | -40–+55℃ | |||
| Humidity range | 5%-95% | |||
| Waterproof standard | IP65 | |||
| Size | 108x65x65mm | |||
| Weight | 250g | |||
* This product complies with MIL-STD-810G quality standards and is not subject to ITAR export control restrictions.
The full body made by high quality plastic military standard quality, the tubes easy to buy at North American and European, please send inquiry through below contact form, you will got reply in 12 hours. Thanks
