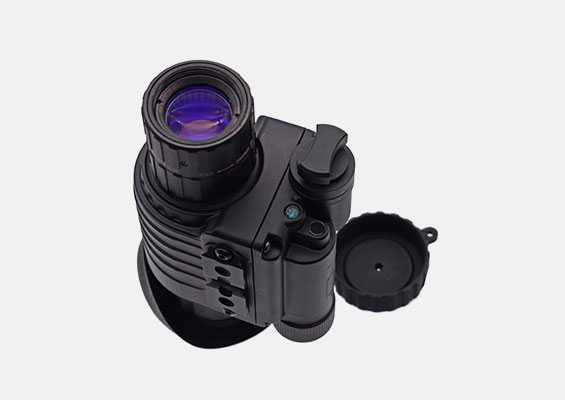

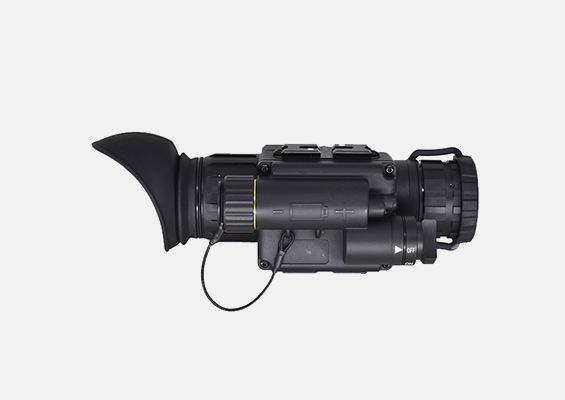

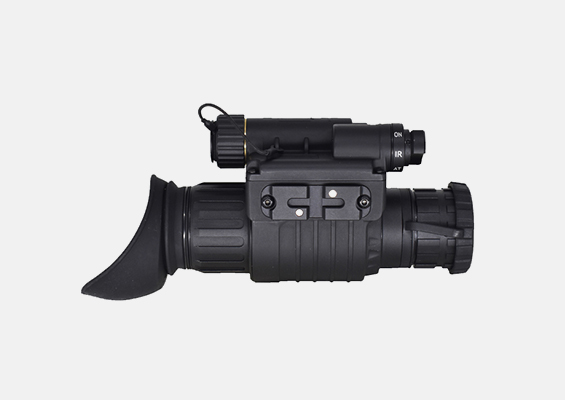

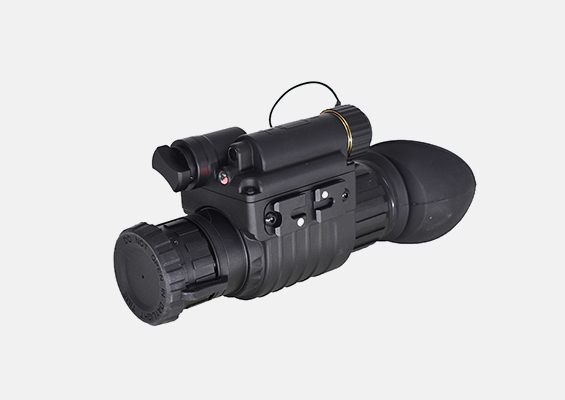

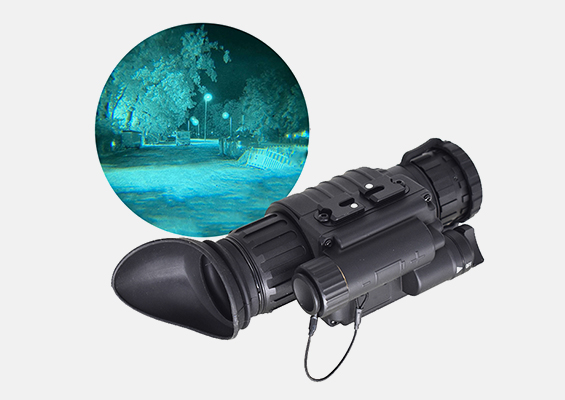

LinduNV night vision monocular LDNV002 as a product of the same model as PVS-31, is the cheapest device in night vision area. Wholesale housing kit (optics included) and complete device, it fit 43×22.5mm resolution 40-45 lp/mm Gen2+ tube, more portable, it is necessary device in military area.

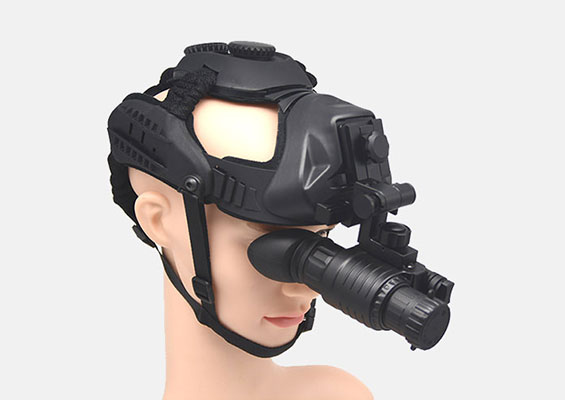

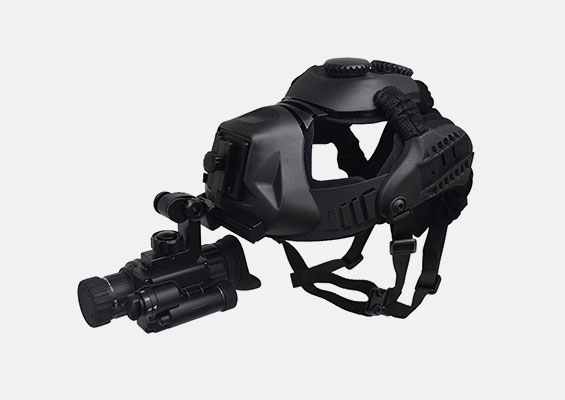

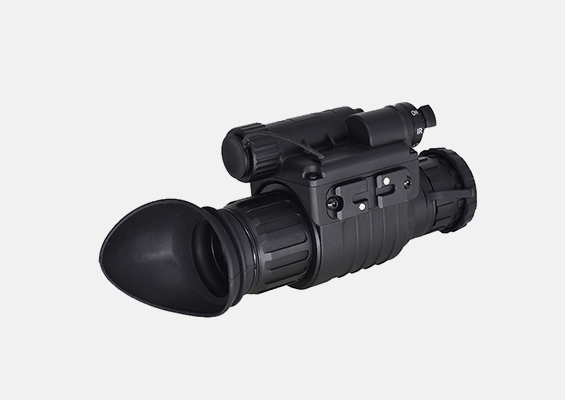

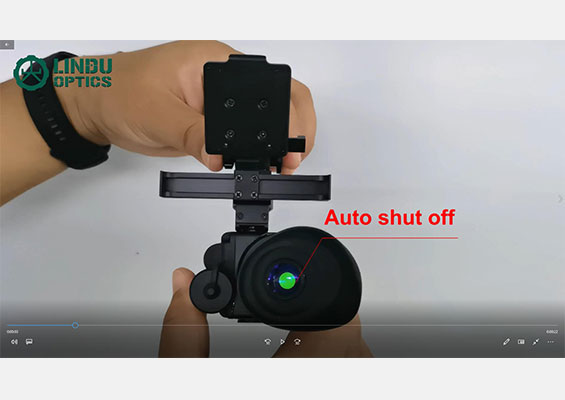

LDNV002 with aluminum alloy body is strong in shock resistance, using our LinduNV original customized mount to achieve “Flip up/down, auto shut off/on” function.
Equipped with build-in IR indicator and low battery indicator, and has strong light protection. The multi-layer composite broadband ultra-high vacuum Ion-assisted anti-reflection coating (AR Coating) improves the image clarity, and the sacrificial window (optional) and waterproof performance (IP65-standard, IP67-optional) are all adapt to complex environments.
Supports 3X/5X magnifier lens to enhance long-distance observation capabilities. Taking into account both portability and high performance, it is suitable for night operations, patrols and other nighttime tasks, and is a reliable equipment for professional users.
| Gen2+ Image intensifier tube | ||
|---|---|---|
| FOM | FOM720+ | FOM1200+ |
| SNR(dB) | 15-18 | 20-22 |
| Resolution(lp/mm) | 40-45 | 60-63 |
| Gain(cd/m²/lx) | 20000 | |
| Phosphor | White phosphor P45 | Green Phosphor P43 |
| Electric | ||
| Battery type | CR123 | |
| Voltage range | 2.6-4.2V | |
| Switch model | ON/IR/AUTO | |
| Power | ＜0.1W | |
| Auto function | Filp up/down | |
| Working time | 60-100H | |
| IR illuminator | 850nm 20mW | |
| IR indicator | Yes | |
| Optical | ||
| Magnification | 1X | |
| FOV | 40+/-2° | |
| Optical distortion | 2% Max | |
| Diopter range | ±5° | |
| Optical system | F1.2 25mm | |
| Focus range(M) | 0.25–∞ | |
| Structure | ||
| Focus type | Manual | |
| Temperature range | -40–+55℃ | |
| Humidity range | 5%-95% | |
| Waterproof standard | IP65 | |
| Size | 115x69x54mm | |
| Weight | 295g(without battery) | |
* This product complies with MIL-STD-810G quality standards and is not subject to ITAR export control restrictions.
The full body made by high quality plastic military standard quality, the tubes easy to buy at North American and European, please send inquiry through below contact form, you will got reply in 12 hours. Thanks
