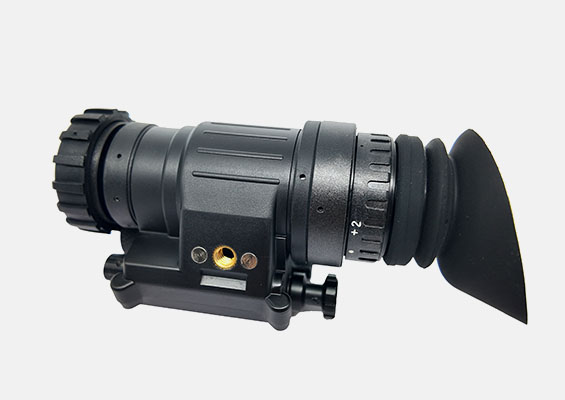

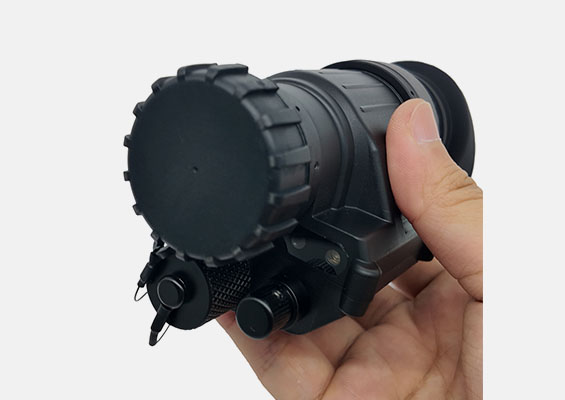

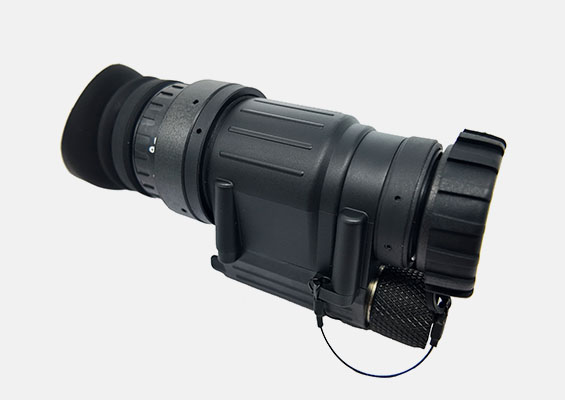

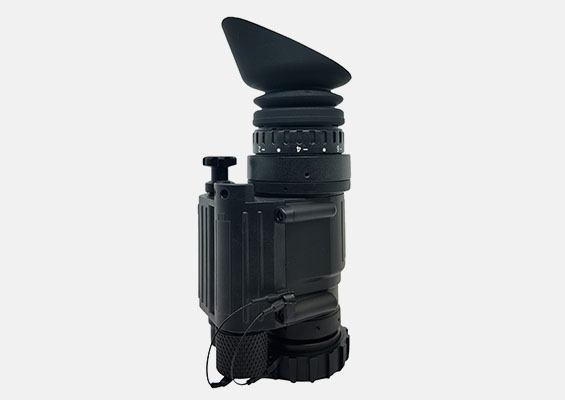

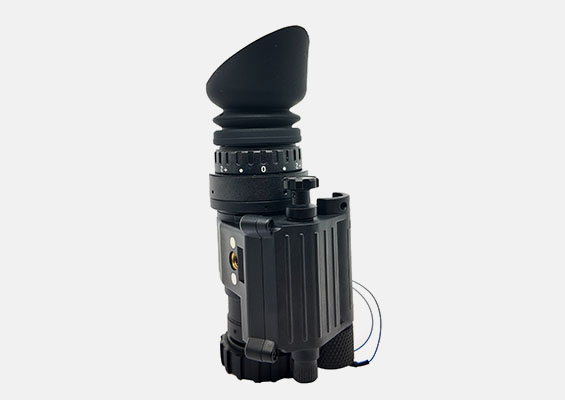

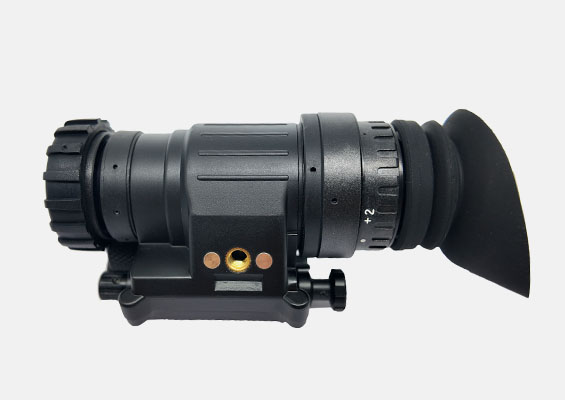

LinduNV’s LD-NVM18 double knob manual gain control version night vision monocular is compatible with original PVS-14 optical lenses and Carson lenses.
Suitable different type Gen 2+ and Gen3 image intensifier tubes, like MX10160 tube, MX11769 pigtail tubes, 3 pins and three wires manual gain control tubes.
Using our LinduNV original customized mount with J-arm can achieve “auto shut off when flip up, auto turn on when flip down” function. With its military standard high quality and unique design, it has become the favorite of professional night vision users.
Main features:
1. Same optical quality with Carson lens;
2. Build in IR indicator and low battery indicator;
3. IP65 waterproof standard(IP67 optional);
4. Separate manual gain control knob;
5. 30mm diameter eyepiece lens;
6. Longer eye relief 30mm with full FOV;
7. AA battery;
8. Automatic shut off when flipped up;
9. Can fit 3X and 5X magnifier lens;
10. Offer accessories like Sacrificial window, demist shield, rail mount, Tarsier Eclipse, J-arm and mount
| Gen2+ Image intensifier tube | ||||
|---|---|---|---|---|
| FOM | FOM1400+ | FOM1600+ | FOM1800+ | FOM2000+ |
| SNR(dB) | ≥23 | ≥25 | ≥28 | |
| Resolution(lp/mm) | ≥60 | ≥64 | ≥68 | |
| Gain(cd/m²/lx) | 8000-12000 | 12000-20000 | ||
| Gen3 Image intensifier tube | ||||
| FOM | FOM1200+ | FOM1400+ | FOM1600+ | FOM1800+ |
| SNR(dB) | ≥22 | ≥25 | ≥28 | |
| Resolution(lp/mm) | ≥51 | ≥55 | ≥60 | ≥64 |
| Gain(cd/m²/lx) | 8000-20000 | 11000-20000 | 12000-20000 | |
| Electric | ||||
| Battery type | AA | |||
| Voltage range | 1.2-1.5V | |||
| Switch model | OFF/ON/IR | |||
| Power | ＜0.1W | |||
| Working time | 40H | |||
| IR indicator | Yes | |||
| Low battery indicator | Yes | |||
| Optical | ||||
| Magnification | 1X | |||
| FOV | 40 degree | |||
| Optical distortion | 0.5% Max | |||
| Diopter range | -6 ~ +2SD | |||
| Optical system | F1.2 25mm | |||
| Focus range(M) | 0.25–∞ | |||
| Eye relief | 30mm | |||
| Lens coating | FMC | |||
| Structure | ||||
| Gain control | Manual | |||
| Rotating test | Flip up auto shut off | |||
| Waterproof standard | IP67 | |||
* This product complies with MIL-STD-810G quality standards and is not subject to ITAR export control restrictions.
Gen2+ and Gen3 version with different FOM level also can be offered, we have gen2+ FOM1400 white and green phosphor in stock, as well as housing kit, private guys good choice, please contact us through below contact sheet for price, thanks
