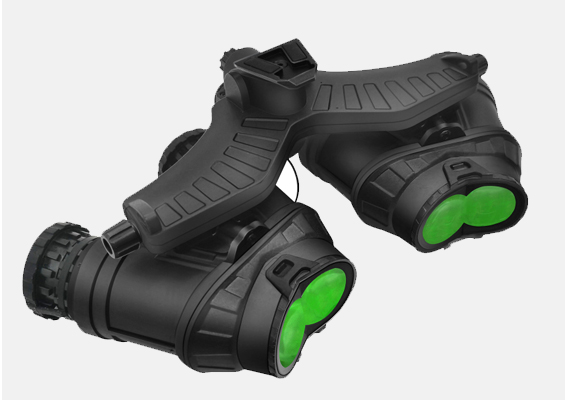

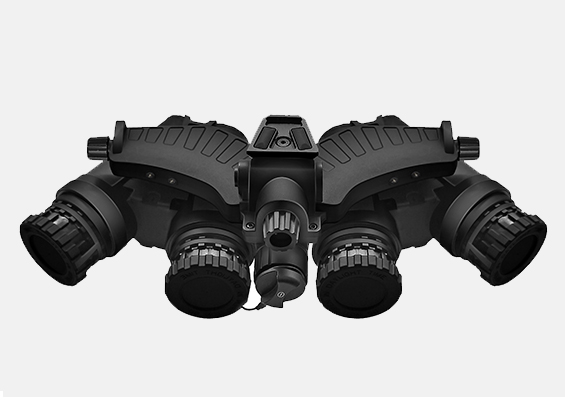

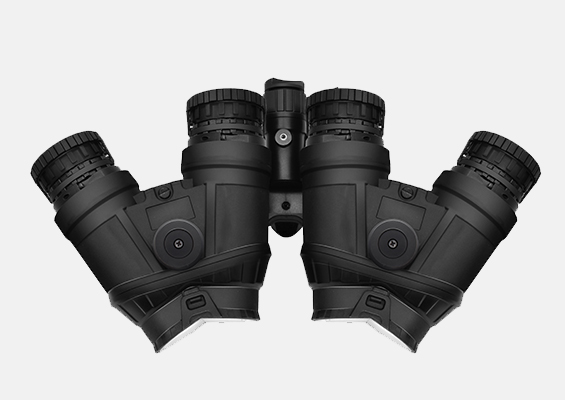

GPNVG 18 plus is LinduNV’s first design Ground Panoramic Night Vision Goggles which model number LDNV014 . The purpose of the GPNVG is to provide the operator more information under goggles, allowing him to more quickly move through the OODA Loop (Observe, Orient, Decide, Act). The most striking feature of the GPNVG is the presence of four separate image intensifier tubes with four separate objective lenses arrayed in a panoramic orientation.
The LDNV014 body is made of high-strength, high-temperature resistant engineering plastics that meet military-grade standards. The product has a high cost-effectiveness and is more than 50% cheaper than most similar products in the night vision field.

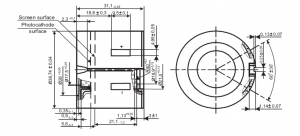

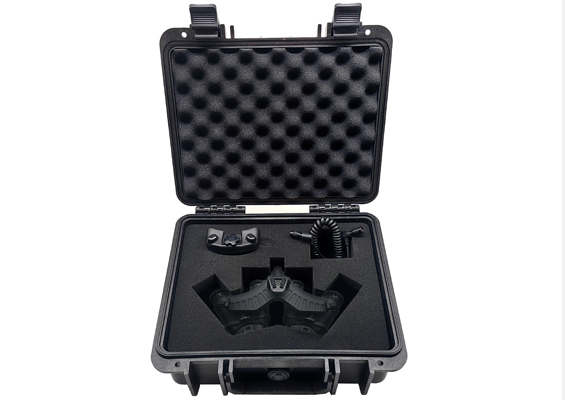

We offer the GPNVG housing kit with battery packs. MX10160 image intensifier tube available in gen2+/gen3 green/white phosphor for selection. GPNVG18 complete device equipped with image intensifier tubes of different specifications have different prices.

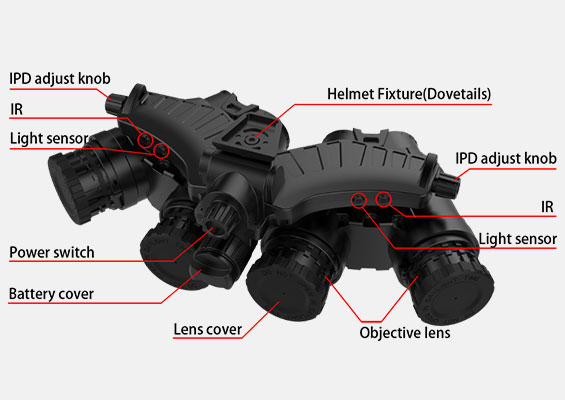

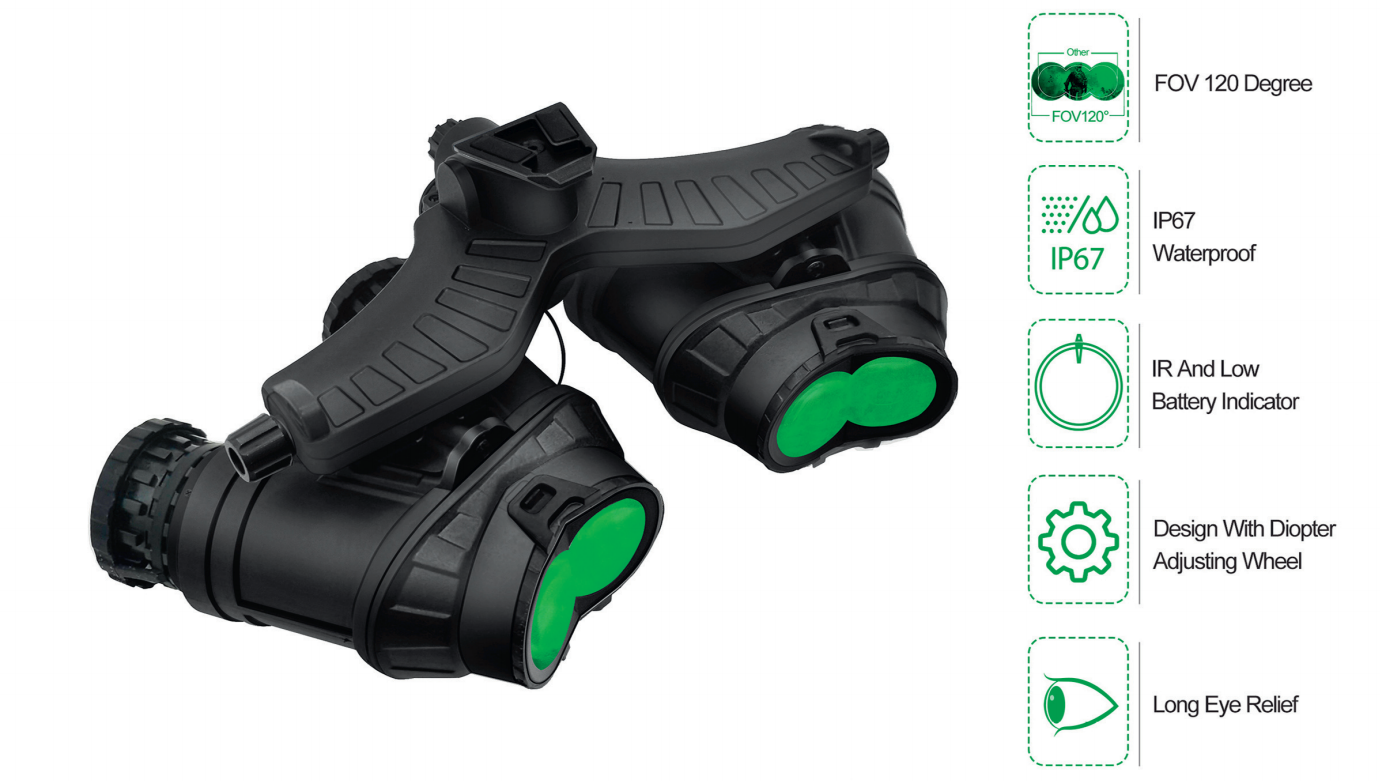

Product Features

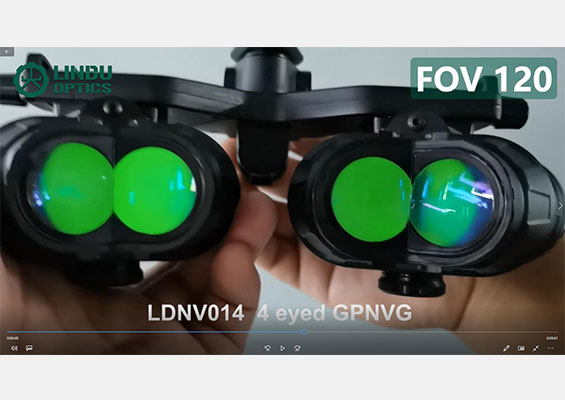

1. Super-wide 120 degree FOV;
2. IP65 waterproof, IP67 also can offer;
3. Improved optics – reduced distortion(less than 1%) and longer eye relief(25-40mm) for enhanced comfort;
4. Enhanced durability – military-grade engineering plastics + aviation aluminum alloy dovetail groove;

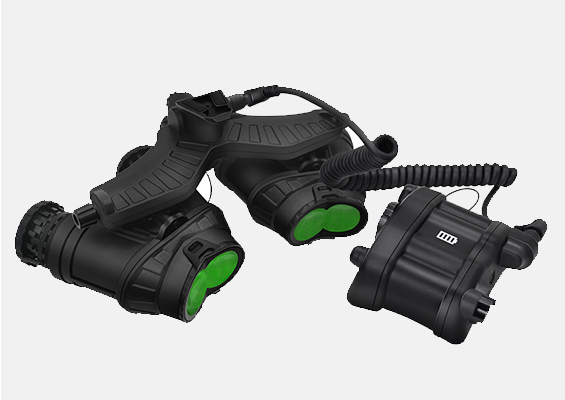

5. Removable battery packs (40-80 hours of battery life) with 4pcs CR123 batteries;

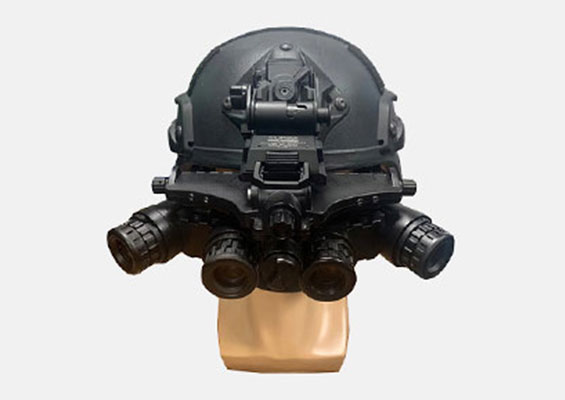

6. Available with G24 mount to connect helmet;
7. Build-in IR and low battery indicator;
8. Separately diopter adjusting knob offer offer range +1.5 to -2.5(argus PNVG and L3 GPNVG18 has not this knob)
9. Auto function, flip up auto shot off, flip down auto turn on;
| Gen2+ Image intensifier tube | ||||
|---|---|---|---|---|
| FOM | FOM1400+ | FOM1600+ | FOM1800+ | FOM2000+ |
| SNR(dB) | ≥23 | ≥25 | ≥28 | |
| Resolution(lp/mm) | ≥60 | ≥64 | ≥68 | |
| Gain(cd/m²/lx) | 8000-12000 | 12000-20000 | ||
| Gen3 Image intensifier tube | ||||
| FOM | FOM1200+ | FOM1400+ | FOM1600+ | FOM1800+ |
| SNR(dB) | ≥22 | ≥25 | ≥28 | |
| Resolution(lp/mm) | ≥51 | ≥55 | ≥60 | ≥64 |
| Gain(cd/m²/lx) | 8000-20000 | 11000-20000 | 12000-20000 | |
| Electric | ||||
| Battery type | CR123 | |||
| Voltage range | 2.6-4.2V | |||
| Switch model | ON/IR/AUTO | |||
| Power | ＜0.2W | |||
| Battery capacity | 800-3200maH | |||
| Working time | 30-80H | |||
| IR illuminator | 850nm 20mW | |||
| IR indicator | Yes | |||
| Optical | ||||
| Magnification | 1X | |||
| FOV | 120±2° | |||
| Optical distortion | 1% Max | |||
| Diopter range | ±5° | |||
| Optical system | F1.18 22.5mm | |||
| Focus range(M) | 0.25–∞ | |||
| Eye relief | 30mm | |||
| Optical MTF | 120LP/mm | |||
| Structure | ||||
| Focus type | Manual | |||
| IPD range | 50-85mm | |||
| IPD lock type | Manual | |||
| Temperature range | -40℃~+55℃ | |||
| Humidity range | 5%-95% | |||
| Waterproof standard | IP65 | |||
| Size | 155x136x83mm | |||
| Weight | 880g | |||
* This product complies with MIL-STD-810G quality standards and is not subject to ITAR export control restrictions.
The full body made by high quality plastic military standard quality, the tubes easy to buy at North American and European, please send inquiry through below contact form, you will got reply in 12 hours. Thanks
