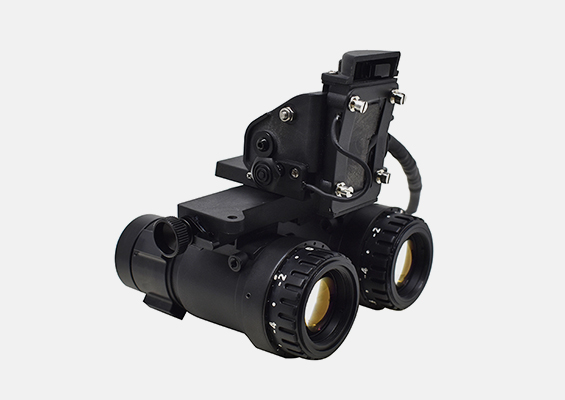

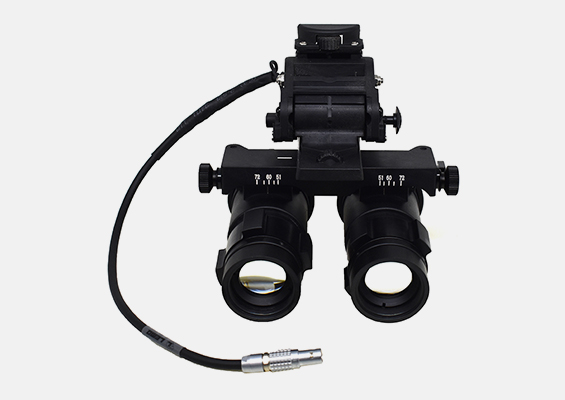

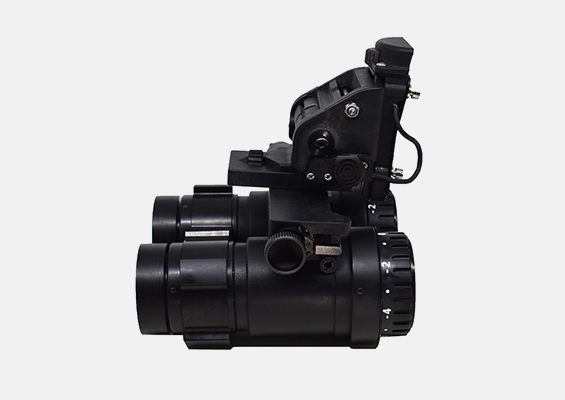

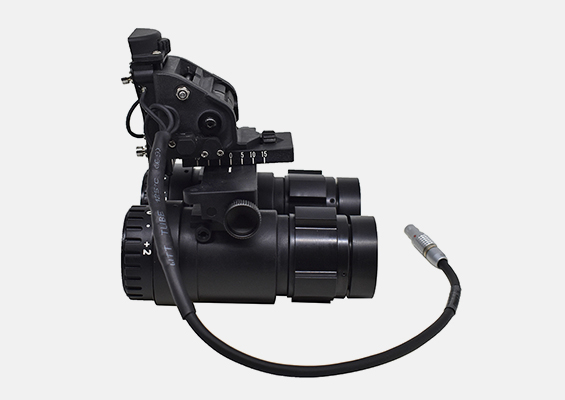

LinduNV’s head-mounted low-light night vision binocular (Pilot NVG), with the model number LD-NVG37. This Pilot NVG has excellent performance parameters, it strikes a good balance between optical magnification and field of view (FOV), and it is highly adjustable, and users can flexibly adjust it according to their own situation to ensure comfortable wearing and convenient use.
In low-light conditions at night, when the helicopter takes of, lands, circles or Nap-of-the-earth at a speed of less than 280km/h, it can provide clear images of the targets and assists the pilot in observation, fire covering, strike and other tasks. It can be compatible with pilot oxygen mask (YM-14), gas mask (FMJ08) as well.
It suitable image intensifier tube MX10160 (auto gain), available in gen2+/gen3 green phosphor white phosphor for selection.
| Gen2+ Image intensifier tube | ||||
|---|---|---|---|---|
| FOM | FOM1400+ | FOM1600+ | FOM1800+ | FOM2000+ |
| SNR(dB) | 23 | 25 | 28 | |
| Resolution(lp/mm) | 60 | 64 | 68 | |
| Gain(cd/m²/lx) | 8000-12000 | 12000-20000 | ||
| Gen3 Image intensifier tube | ||||
| FOM | FOM1200+ | FOM1400+ | FOM1600+ | FOM1800+ |
| SNR(dB) | ≥22 | ≥25 | ≥28 | |
| Resolution(lp/mm) | ≥51 | ≥55 | ≥60 | ≥64 |
| Gain(cd/m²/lx) | 8000~20000 | 11000~20000 | 12000~20000 | |
| Electric | ||||

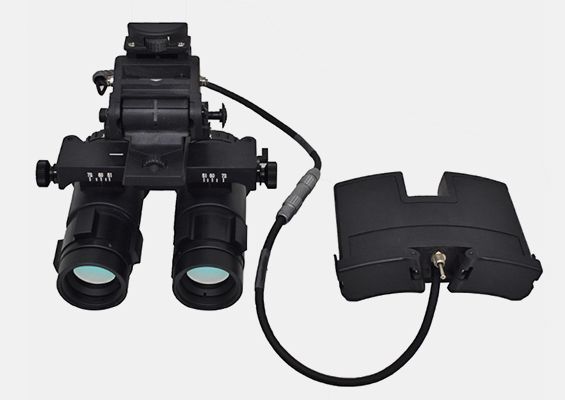

| Battery type | 2pcs 1.5V AA battery | |||
| Optical | ||||
| Magnification | 1X | |||
| FOV | 40° | |||
| Pupillary distance | 52 ～ 74mm | |||
| Diopter range | -5°-+2° | |||
| Focus range | 500mm–∞ | |||
| Eye relief | 25mm | |||
| Exit Pupil Diameter | 14mm | |||
| Vertical adjustment range | ≥16mm | |||
| Fore and aft adjustment range | ≥16mm | |||
| Pitching adjustment range | ≥8° | |||
| Structure | ||||
| Working Temp | -40–+55℃ | |||
| Storage Temp | -50℃～ +65℃ | |||
| Weight | 470g | |||
* This product complies with MIL-STD-810G quality standards and is not subject to ITAR export control restrictions.
The full body made by high quality plastic military standard quality, the tubes easy to buy at North American and European, please send inquiry through below contact form, you will got reply in 12 hours. Thanks
