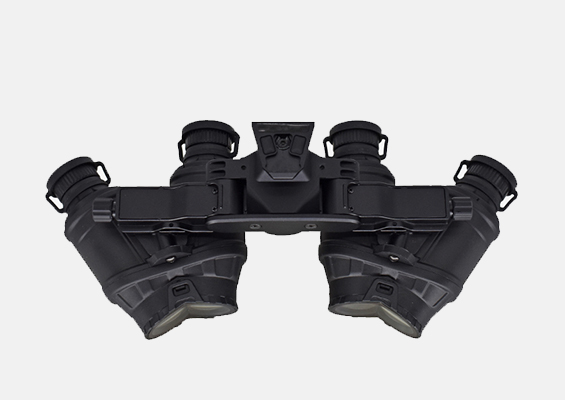

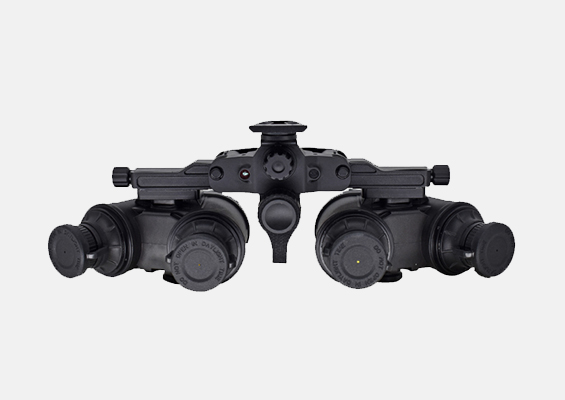

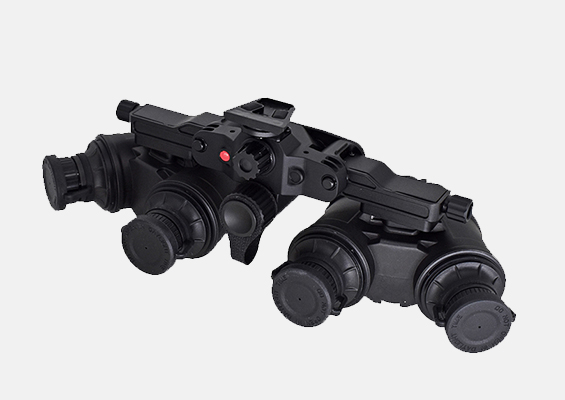

LinduNV butterfly bridge quad tube night vision goggles (BBQNVG). The heart of its remarkable design lies the unique butterfly bridge, making it set apart from conventional quad tube night vision goggles. This ingenious design allows quick and easy adjustment, not only providing stability and durability but also providing effortless portability, adapting to various viewing angles and scenarios.

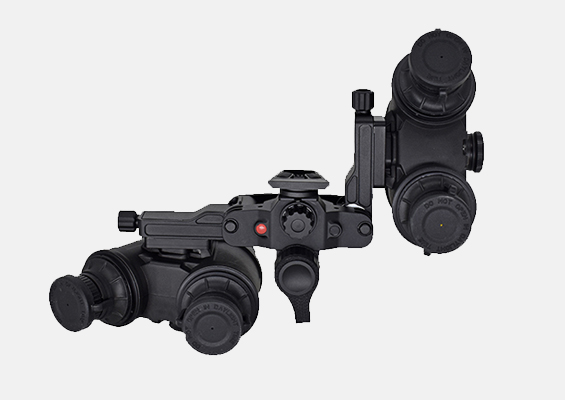

Compared to LinduNV’s other two quad tube night vision goggles, LDNV018 and LDNV014, the foldable aluminum alloy connecting bridge is definitely the biggest highlight. By folding upwards, it can be flipped on and off, while the other two connecting bridges are made of plastic material. In terms of weight, BBQNVG weighs about 830g, which is about 50g lighter than LDNV014 but slightly heavier than LDNV018. The BBQNVG pods is compatible with both other pods.
BBQNVG can fit the MX10160 image intensifier tube and is equipped with a battery packs with friend or foe identification function.

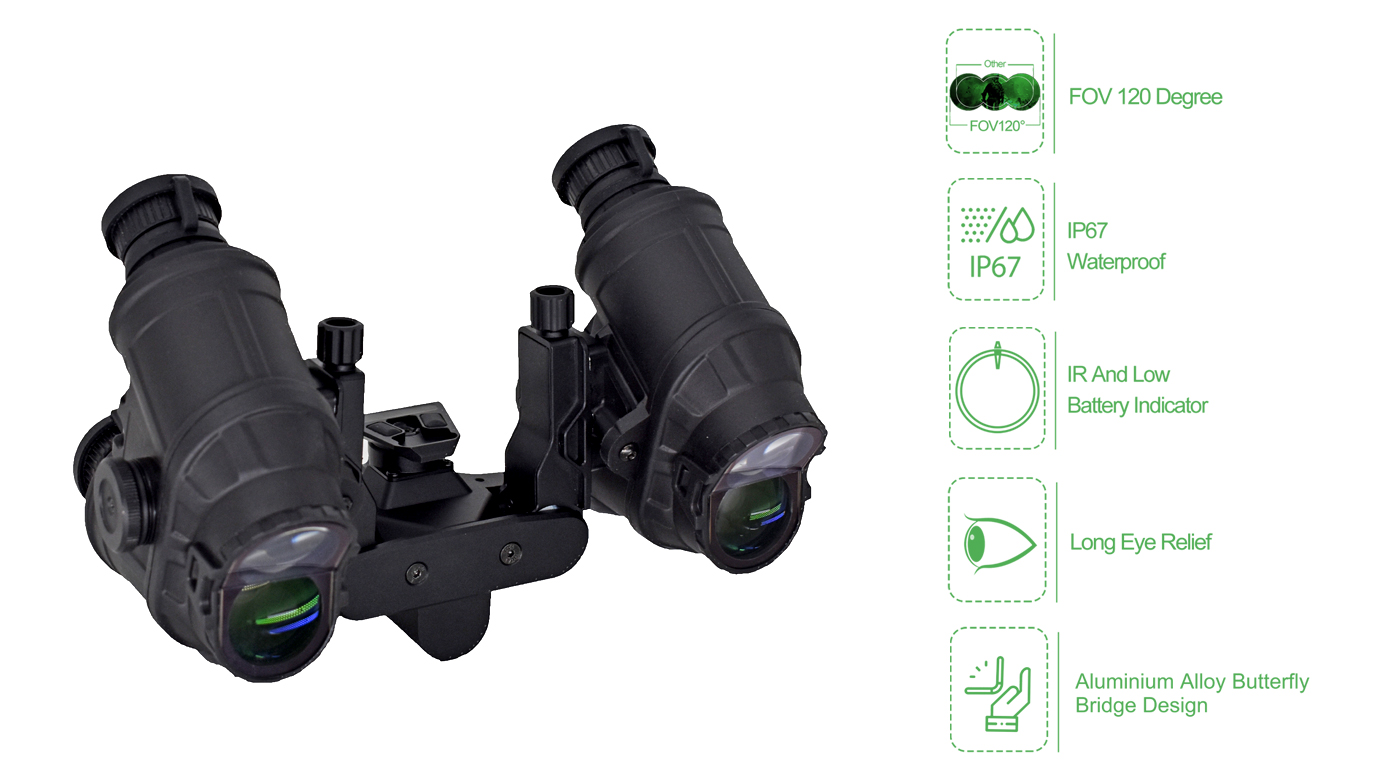

Main Features
1. Foldable aluminum alloy connecting bridge;
2. Super-wide 120 degree FOV;
3. Improved optics – reduced distortion(less than 1%) and longer eye relief(25-40mm) for enhanced comfort;
4. Enhanced durability – military-grade engineering plastics + aviation aluminum alloy bridge;
5. Removable battery packs (40-80 hours of battery life) with 4pcs CR123 batteries;
6. Available with G24 mount to connect helmet;
7. Build-in IR and low battery indicator;
8. Separately diopter adjusting knob offer offer range +1.5 to -2.5(argus PNVG and L3 GPNVG18 has not this knob)
9. Auto function on full device and each pods, flip up auto shot off, flip down auto turn on;
10. IP65 waterproof, IP67 also can offer;
Electric
| Gen2+ Image intensifier tube | ||||
|---|---|---|---|---|
| FOM | FOM1400+ | FOM1600+ | FOM1800+ | FOM2000+ |
| SNR(dB) | ≥23 | ≥25 | ≥28 | |
| Resolution(lp/mm) | ≥60 | ≥64 | ≥68 | |
| Gain(cd/m²/lx) | 8000-12000 | 12000-20000 | ||
| Gen3 Image intensifier tube | ||||
| FOM | FOM1200+ | FOM1400+ | FOM1600+ | FOM1800+ |
| SNR(dB) | ≥22 | ≥25 | ≥28 | |
| Resolution(lp/mm) | ≥51 | ≥55 | ≥60 | ≥64 |
| Gain(cd/m²/lx) | 8000-20000 | 11000-20000 | 12000-20000 | |
| Battery type | CR123 | |||
| Voltage range | 2.6-4.2V | |||
| Switch model | ON/IR/AUTO | |||
| Power | ＜0.2W | |||
| Battery capacity | 800-3200maH | |||
| Working time | 30-80H | |||
| IR illuminator | 850nm 20mW | |||
| IR indicator | Yes | |||
| Optical | ||||
| Magnification | 1X | |||
| FOV | 120±2° | |||
| Optical distortion | 1% Max | |||
| Diopter range | ±5° | |||
| Optical system | F1.18 22.5mm | |||
| Focus range(M) | 0.25–∞ | |||
| Eye relief | 25-40mm Full FOV | |||
| Optical MTF | 120LP/mm | |||
| Structure | ||||
| Focus type | Manual | |||
| IPD range | 50-85mm | |||
| IPD lock type | Manual | |||
| Temperature range | -40℃~+55℃ | |||
| Humidity range | 5%-95% | |||
| Waterproof standard | IP65 | |||
| Size | 155x136x83mm | |||
| Weight | 830g | |||
* This product complies with MIL-STD-810G quality standards and is not subject to ITAR export control restrictions.
