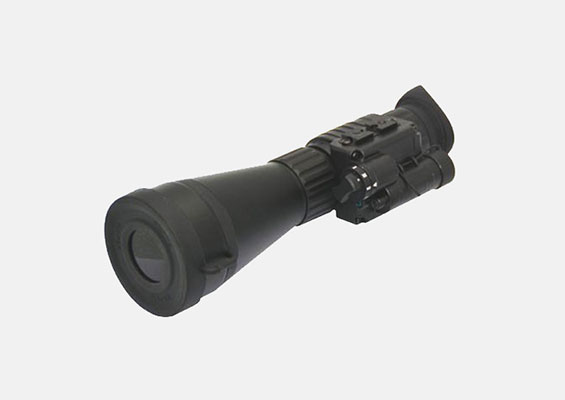

NVM 5×65 gen 2+&3 IIT

  • MODEL: LDNV002X5
  • BODY COLOR: Black
  • SERVICE: OEM and ODM
  • CUSTOMIZE: LOGO and PACKING BOX
  • WARRANTY: 1 YEAR

The Multifunction night vision series is a new product developed based on the latest electronic technology. The night vision series uses a high performance Gen2+/gen3  image intensifier. they has excellent performance, small size, light weight, clear imaging and simple operation. High cost performance. The magnification factor can be changed by  replacing the objective lens (or connecting magnifying lenses).



FEATURES

1. Gen 2+ or gen 3 image intensifier tube;
2. Long life time 10,000 hours;
3. Long Battery life 80 hours;
4. Small size;
5. Light weight;
6. Waterproof IP65 or IP67;

  • Image intensifier Gen 2+/gen 3
    Magnification 5X
    Resolution ( lp/mm) 45-57/51-57
    Photocathode S25/GaAs
    S/N (dB) 15-21/18-25
    Sensitivity 2850K(uA/lm) 450-500/500-600
    Life (H) 10,000
    View of angle(degree) 12+/-3
    View distance(M) 580-650/650-700
    Diopter range ±5
    Graduation cursor Internal(optional)
    Optical system F1.5, 65mm  FL=90
    Lens coating Fully multilayer broadband coating
    Distance range(M) 10–∞
    Auto anti strong light High sensitivity broadband detection
    Rollover detection Solid non-contact automatic detection
    Size(No eyeshade) 220x72x56mm
    Material Aviation aluminum
    Weight (no battery) 535g
    Battery Voltage 2.6-4.2V
    Battery type CR123(A)x1
    Battery life(H) 80(IR OFF)    40(IR ON)
    Temperature range(℃) -40/+50
    Humidity range 5%-98%
    Waterproof IP65(IP67 optional)
»
