7X NVM gen 2+ &3

  • MODEL: LDNV011
  • BODY COLOR: Black
  • SERVICE: OEM and ODM
  • CUSTOMIZE: LOGO and PACKING BOX
  • WARRANTY: 1 YEAR

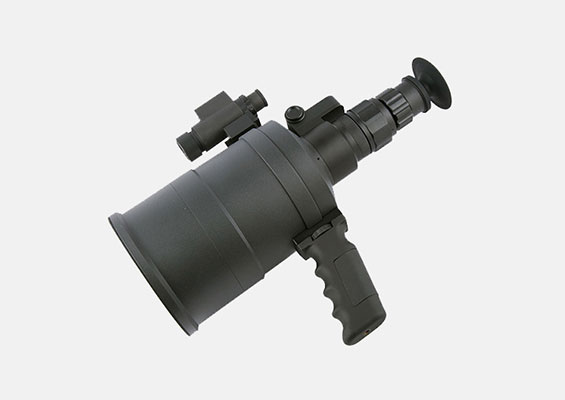

This magnification 7x handhold night vision monocular and design with reflecting objective lens, it always used on Marine, forest long distance view, you can install gen 2+ or gen 3 IIT in it according to your requirement;



FEATURES

1. Gen 2+ or gen 3 image intensifier tube;
2. Long life time 10,000 hours;
3. Long Battery life 20 hours;
4. 1200M long distance view
5. Special design objective lens;
6. Waterproof IP65 or IP67;

  • Image intensifier Gen2+/gen3
    Magnification 7X
    Resolution ( lp/mm) 45-57/51-57
    Photocathode S25/GaAs
    S/N (dB) 15-21/18-25
    Sensitivity 2850K(uA/lm) 450-500/500-600
    Life (H) 10,000
    FOV(degree) 6.5 degree
    View distance(M) 1200M
    Battery life time 20 hours
    Diopter range ±5
    Optical system F1.3, 120mm
    Lens coating Fully multilayer broadband coating
    Distance range(M) 10M–∞
    Size(No eyeshade) 130x130x250mm
    Material Aviation aluminum
    Weight (no battery) 1788g
    Battery Voltage 2.6-4.2V
    Battery type CR123
    Temperature range(℃) -40/+50
    Humidity range 5%-98%
    Waterproof IP65(IP67 optional)
»
