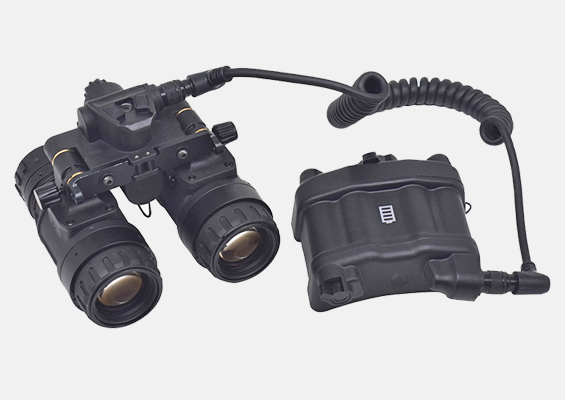

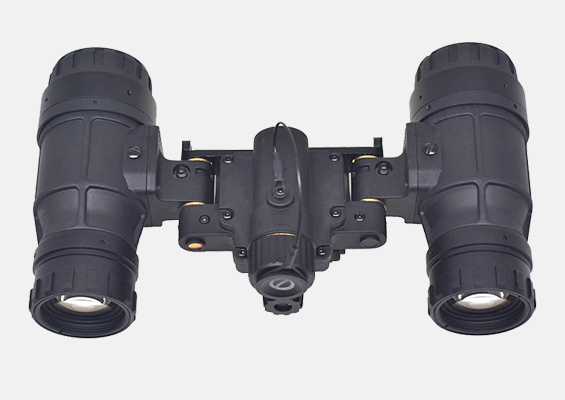

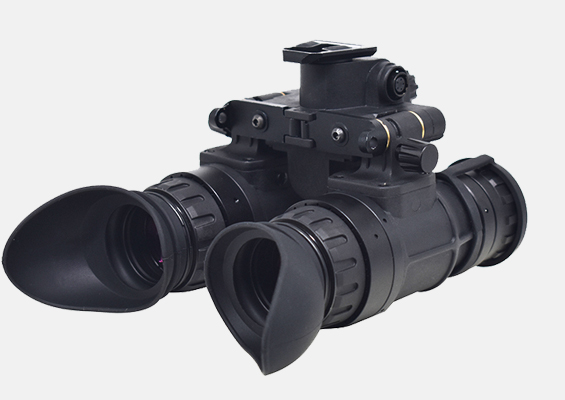

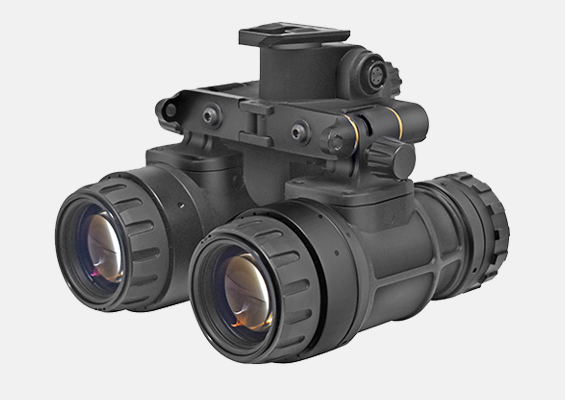

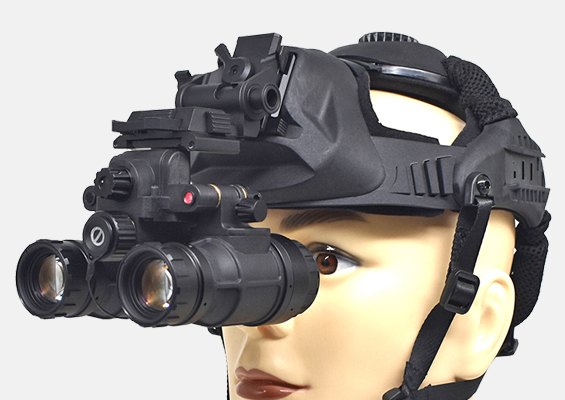

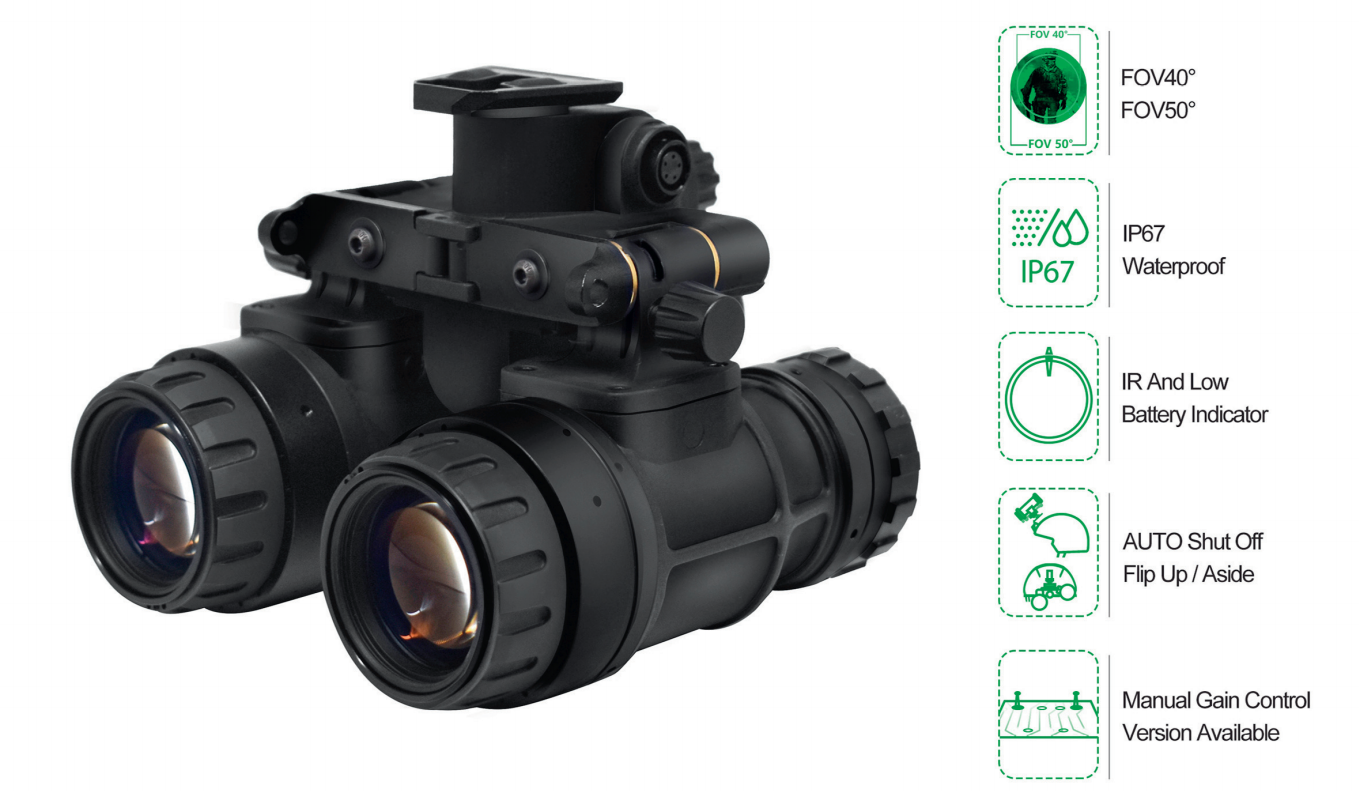

As a product of the same model as PVS-31, LD-NVG32 night vision binocular is similar like BNVD1431. Its quality meets military standards and can be mounted on a helmet. It design with 30mm diameter eyepiece lens, big eye relief range, HD optical system similar like Carson lenses, almost without optical distortion, strong structure, the total specs is the top in the market. It is suitable for a variety of scenarios such as field exploration, hunting activities, night surveillance, security patrols, etc.
It suitable image intensifier tube MX10160 (auto gain) or MX11769 (manual gain), available in gen2+/gen3 green phosphor white phosphor for selection.
We can provide housing kits with optical systems or complete devices with image intensifier tubes.
| Electric | |
|---|---|
| Battery type | CR123/AA |
| Voltage range | 1.5-4.2V |
| Switch model | ON/IR/AUTO |
| Power | ＜0.1W |
| Auto function | Filp up/down, flip aside |
| Working time | 40-100H |
| IR illuminator | 850nm 20mW |
| IR indicator | Yes |
| Optical | |
| Magnification | 1X |
| FOV | 40+/-2° |
| Optical distortion | 1% Max |
| Diopter range | ±5° |
| Optical system | F1.18 22.5mm |
| Focus range(M) | 0.25–∞ |
| Eye relief | 25-40mm |
| Optical MTF | 120LP/mm |
| Structure | |
| Focus type | Manual |
| IPD range | 50-80mm |
| IPD lock type | Manual |
| Temperature range | -40–+55℃ |
| Humidity range | 5%-95% |
| Waterproof standard | IP65 |
| Size | 110x107x88mm(close) |
| Weight | 568g |
* This product complies with MIL-STD-810G quality standards and is not subject to ITAR export control restrictions.
The full body made by high quality plastic military standard quality, the tubes easy to buy at North American and European, please send inquiry through below contact form, you will got reply in 12 hours. Thanks
