MX10130 Gen2+ White/Green Phosphor tube

  • MODEL: MX10130 Gen2+
  • BODY COLOR: Black
  • SERVICE: OEM and ODM
  • CUSTOMIZE: LOGO and PACKING BOX
  • WARRANTY: 1 YEAR
Message Email

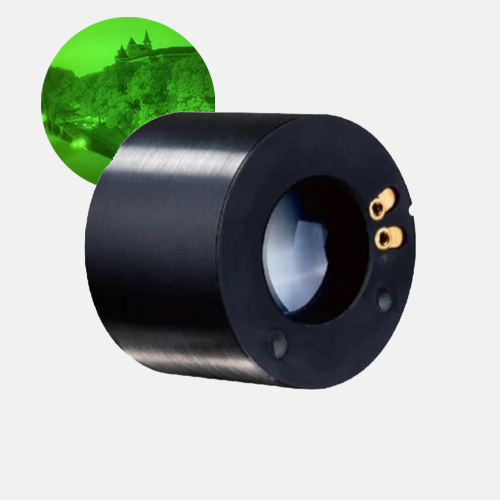

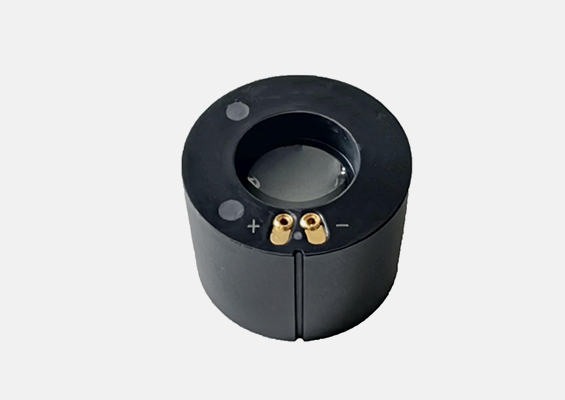

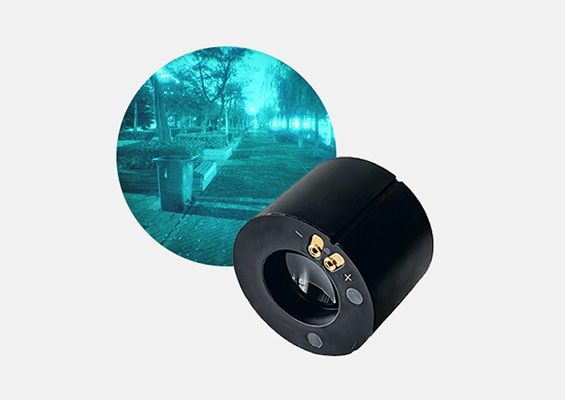

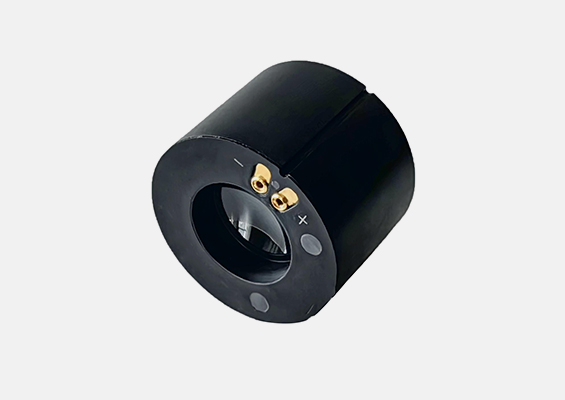

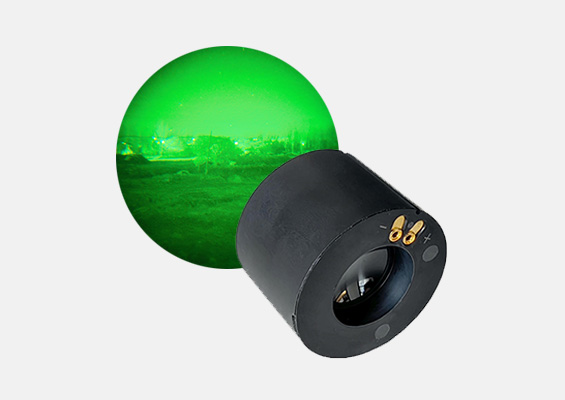

The high-performance  MX10130 image intensifier tube, which is widely used in night vision equipment such as PVS-7. It can greatly enhance the image under weak light (such as moonlight and starlight), making it clearly visible in extremely low light environment. The overall dimension of the enhancement tube is 43mm (length) × 31mm (diameter), and has an effective imaging area of 18mm to ensure compatibility with standard night vision optical systems.



MX10130 Gen2+ Image intensifier tube
Level NVT4 NVT5 NVT6 NVT7
Photocathode S25
FOM FOM1400+ FOM1600+ FOM1800+ FOM2000+
Resolution(lp/mm) ≥60 ≥64 ≥68
SNR(dB) ≥23 ≥25 ≥28
Gain Mode Auto Gain
Gain(cd/m²/lx) 8000-12000 10000-20000
Power supply Normal / Auto-gating Auto-gating
Cathode effective diameter(mm) 18
Phosphor Green Phosphor P43 / White phosphor P45
Life 10000h
Warranty 1 Year





The mx 10130 for sale. 10130 image intensifier can adapt to standard military grade PVS-7, also be adapted to our LDNV003 night vision goggles housing.



We have the capacity to offer more than 10,000pcs all kinds of image intensifier tubes per year, such as MX10160, MX11769, MX10130, which can ensure the stable delivery of large-scale orders. Please contact us for detailed technical parameters and specifications.
