NV5031 Housing Kit

  • MODEL:  LDNV016
  • BODY COLOR: Black
  • SERVICE: OEM and ODM
  • CUSTOMIZE: LOGO and PACKING BOX
  • WARRANTY: 2 YEARS

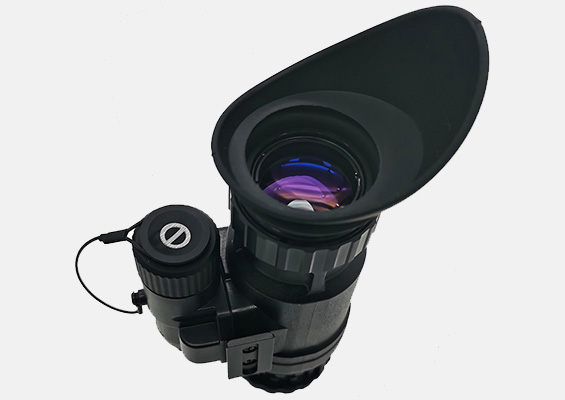

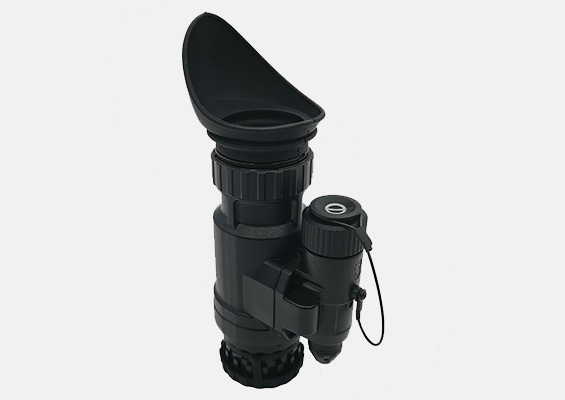

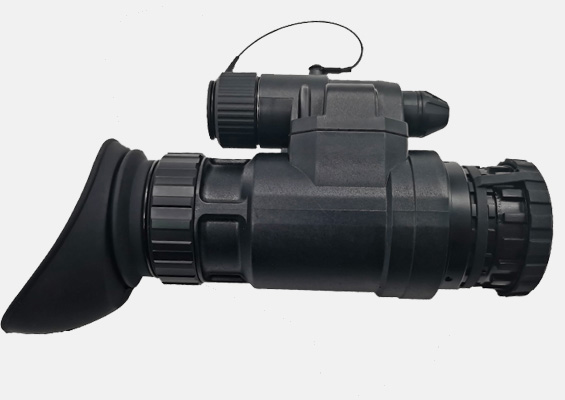

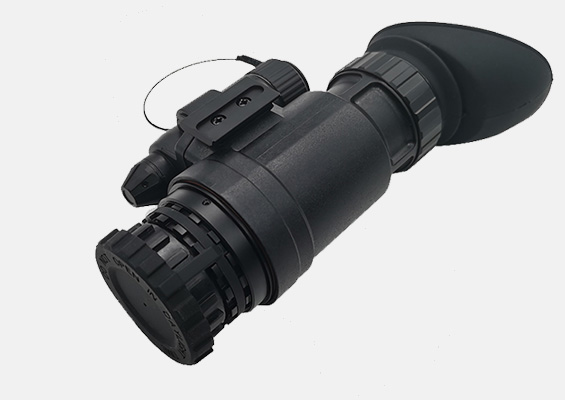

This night vision monocular has FOV 50° and FOV 40° type, 40° is cheaper, both housing kit(optics include) can offer.

It fit MX-10160 tube or other same size tube, tube drawing as below image, our Ground Panoramic Night Vision Goggles use the same tube.

Night vision monocular drawing

Main Features:

1. Light weight only 220g with tubes;
2. IP65 waterproof standard (IP67 optional);
3. AUTO shut OFF/ON when flip up/down, save power when not use;;
4. Build-in IR light;;
5. Power switch offer ON/IR/AUTO working mode;
6. Strong light auto shut off;
7. Eyepiece lens and objective lens coated with demist coating;
8. Offer sacrificial windows(optional);
9. IR LED indicator and low battery LED indicator;
10. Offer 3X and 5X magnifier lens(optional);



Please send inquiry in below contact form,  and tell the version type you are interested in.



Image intensifier Gen2+ / gen 3
Magnification 1X
Type Monocular
Rotating test Auto, flip up auto shut off
Battery type Lithium batteries CR123x1
Voltage range 2.6-4.2V
Control type ON/IR/AUTO
FOV(degree) 50 ±2 degree/40 ±2 degree
Power <0.1W
Battery capacity 800-3200maH
Continue working time 80-200H
Parallelism of optical axes <0.1°
Optical aperture F1.18 22.5mm
Rollover detection Solid non-contact automatic detection
Optical MTF 120LP/mm
Optical distortion 1% Max
Relative Illumination >75%
Lens coating FMC
Focus range 0.25M–∞
»
