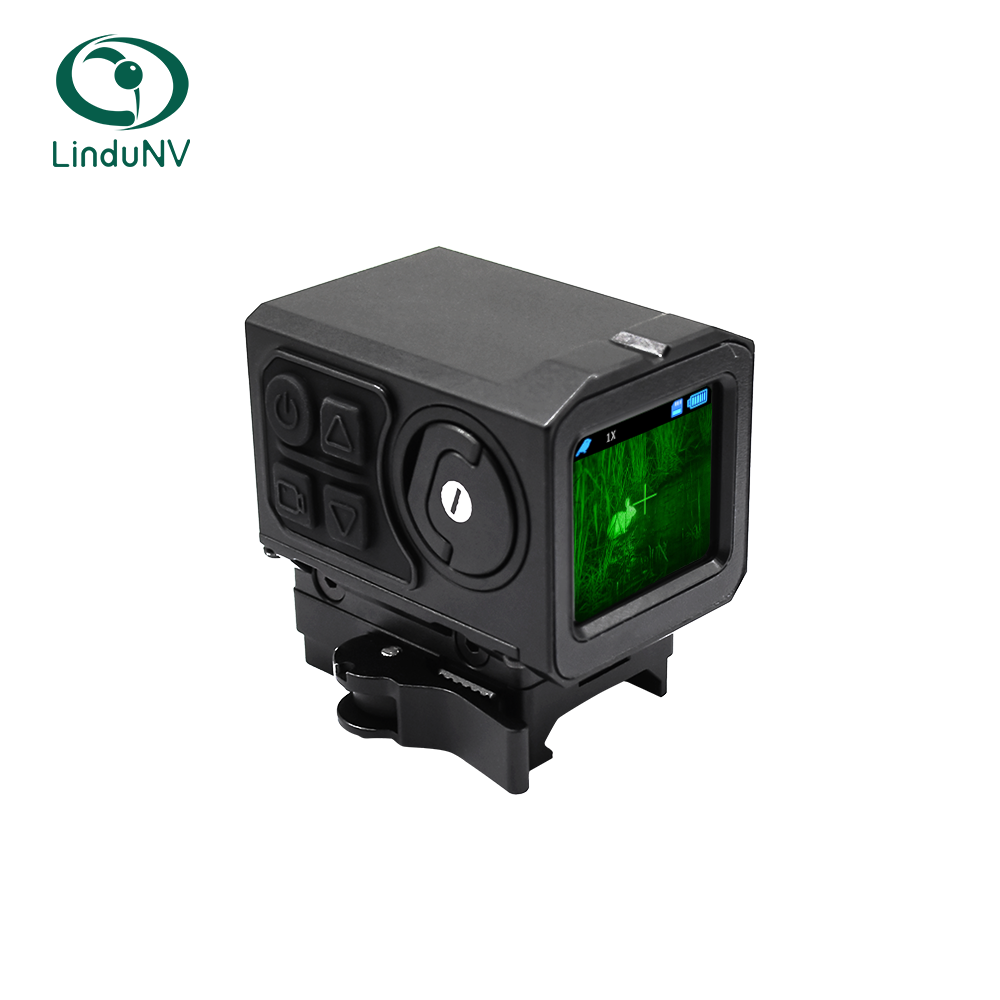

LDTI006-Mini 50Hz 256×192 Thermal Imaging Scope

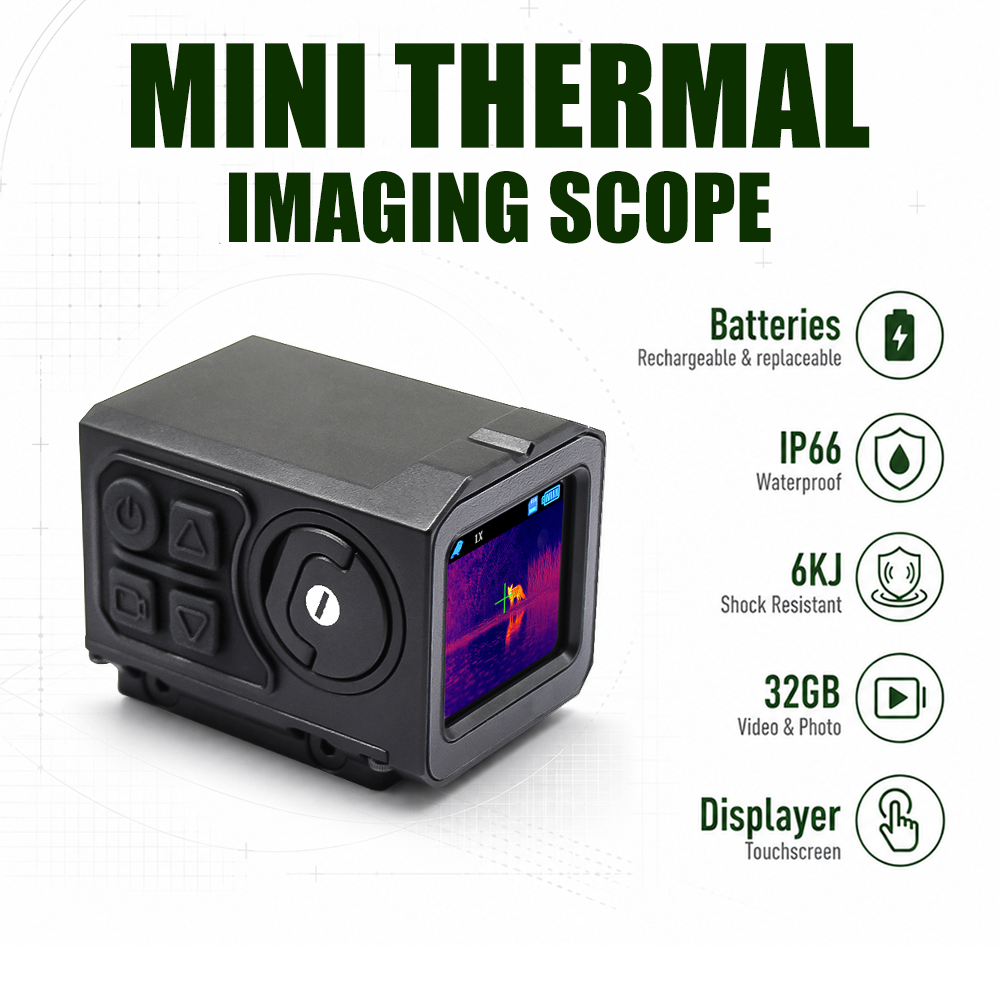

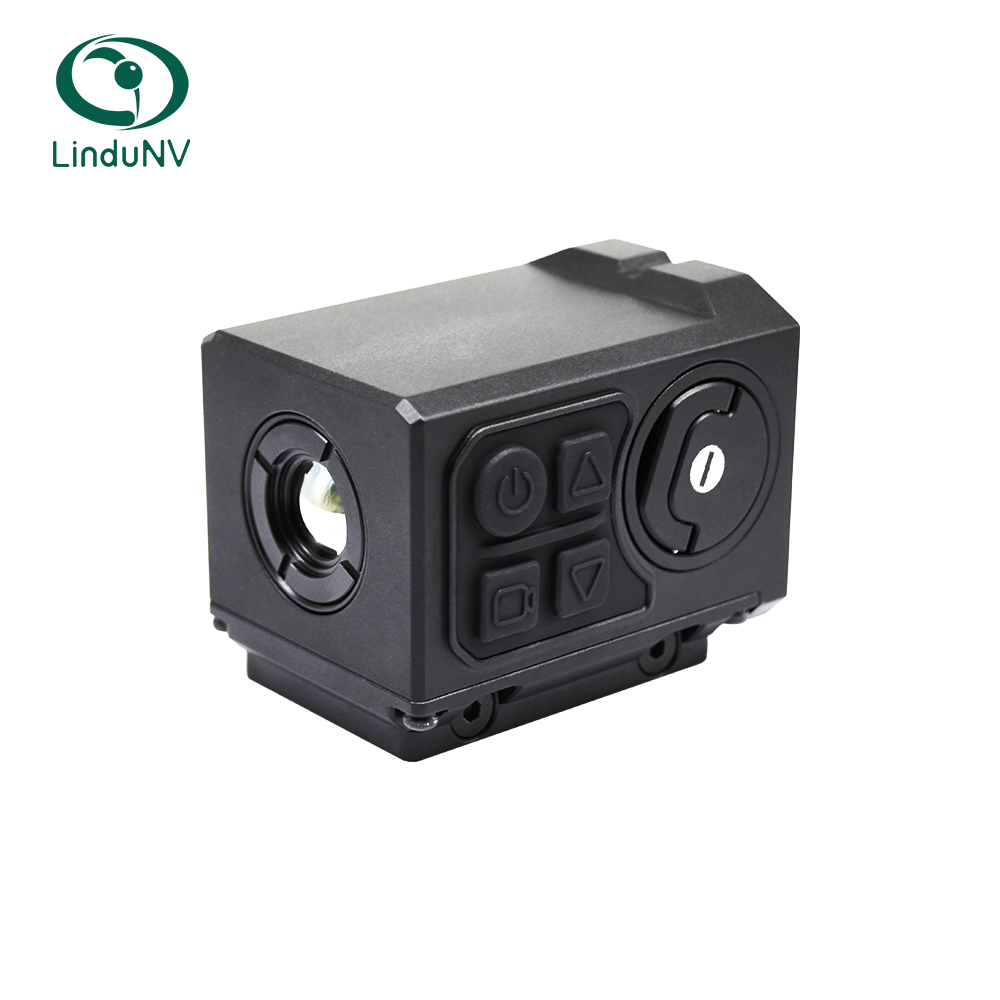

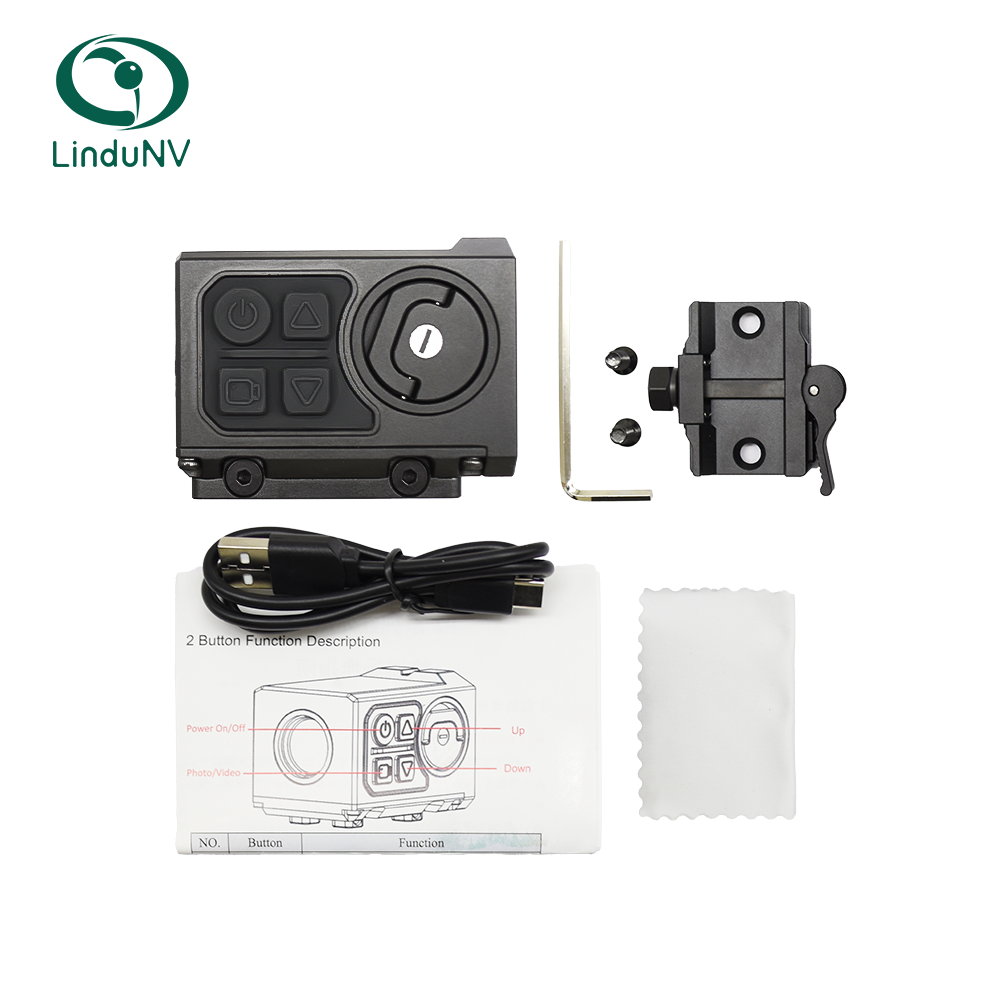

The LDTI006-Mini is a compact thermal imaging scope built around a 256 × 192 infrared detector with a 12 μm pixel pitch and smooth 50 Hz refresh rate. Its compact 52 × 37 × 39 mm body combines thermal observation, a touch-enabled display, video recording, and a quick-release mounting base in a portable platform for outdoor observation and night use.

A 9.7 mm F1.0 objective lens provides an 18° × 13.55° field of view, while fixed-focus operation keeps the optical system simple and fast to use. The device supports person identification at up to 500 meters and vehicle identification at up to 900 meters, together with selectable 1× and 2× digital zoom.

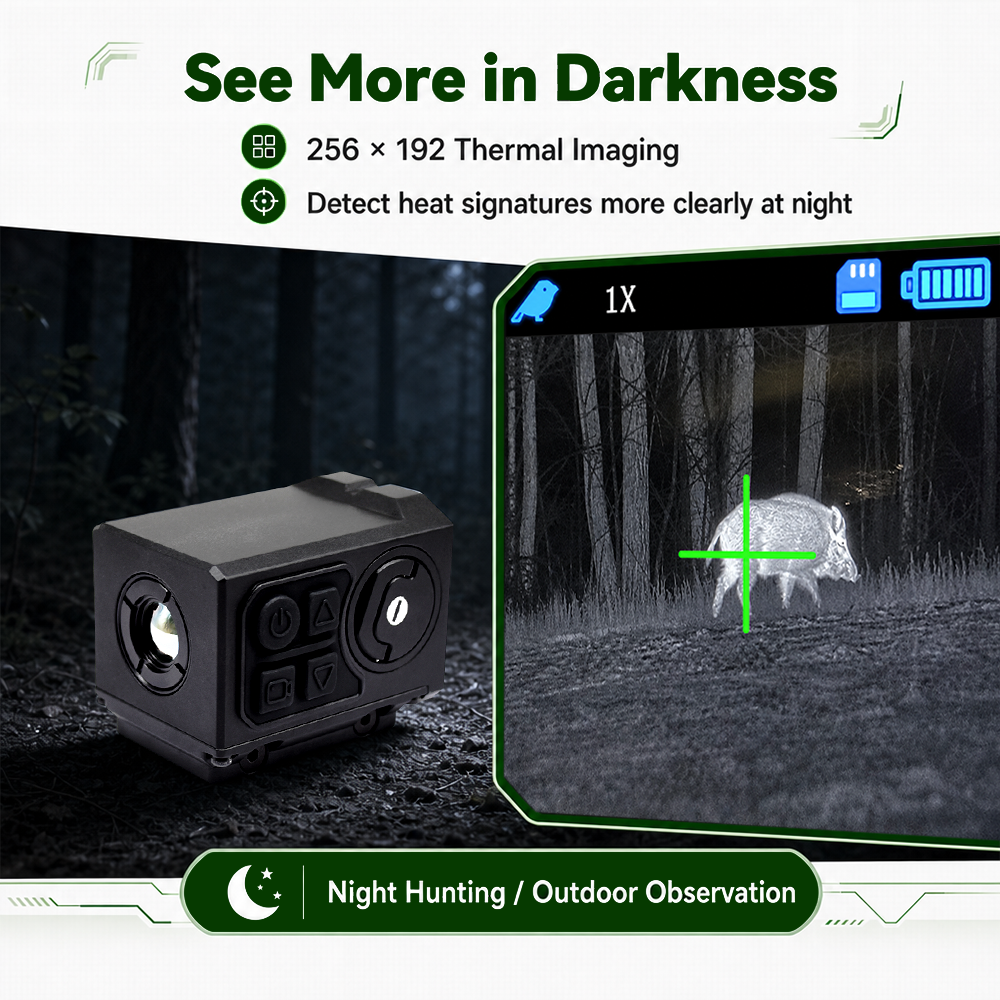

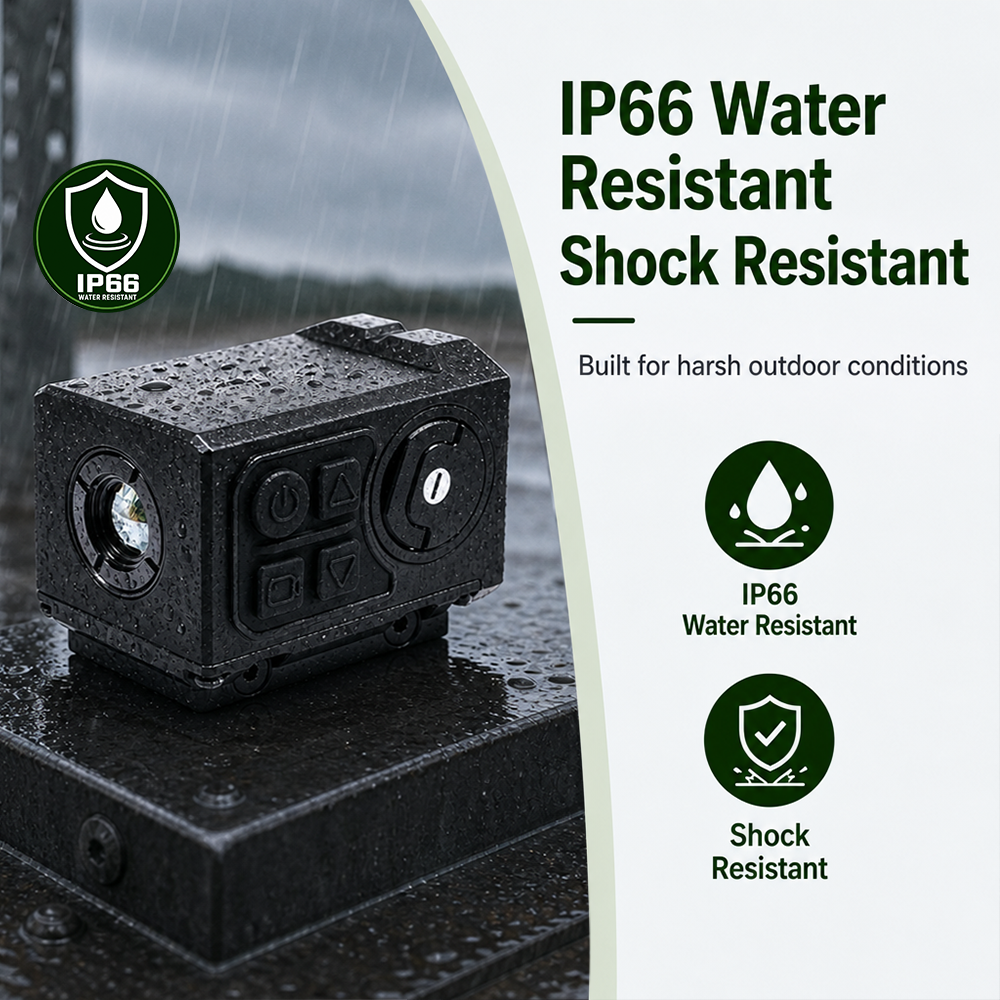

Five thermal display modes — White Hot, Black Hot, Red Hot, Green Hot, and False Color — provide flexible visualization in different observation conditions. The LDTI006-Mini also features a 1.38-inch 400 × 400 display, USB-C 5V power input, multilingual interface, IP66 protection, and at least 1.5 hours of battery runtime.

Main Features

    1. 256 × 192 detector, 12 μm pixel pitch and 50 Hz refresh rate;

    2. 9.7 mm F1.0 fixed-focus lens with an 18° × 13.55° field of view;

    3. Person identification up to 500 m and vehicle identification up to 900 m;

    4. 1× / 2× digital zoom and five display modes: White Hot, Black Hot, Red Hot, Green Hot and False Color;

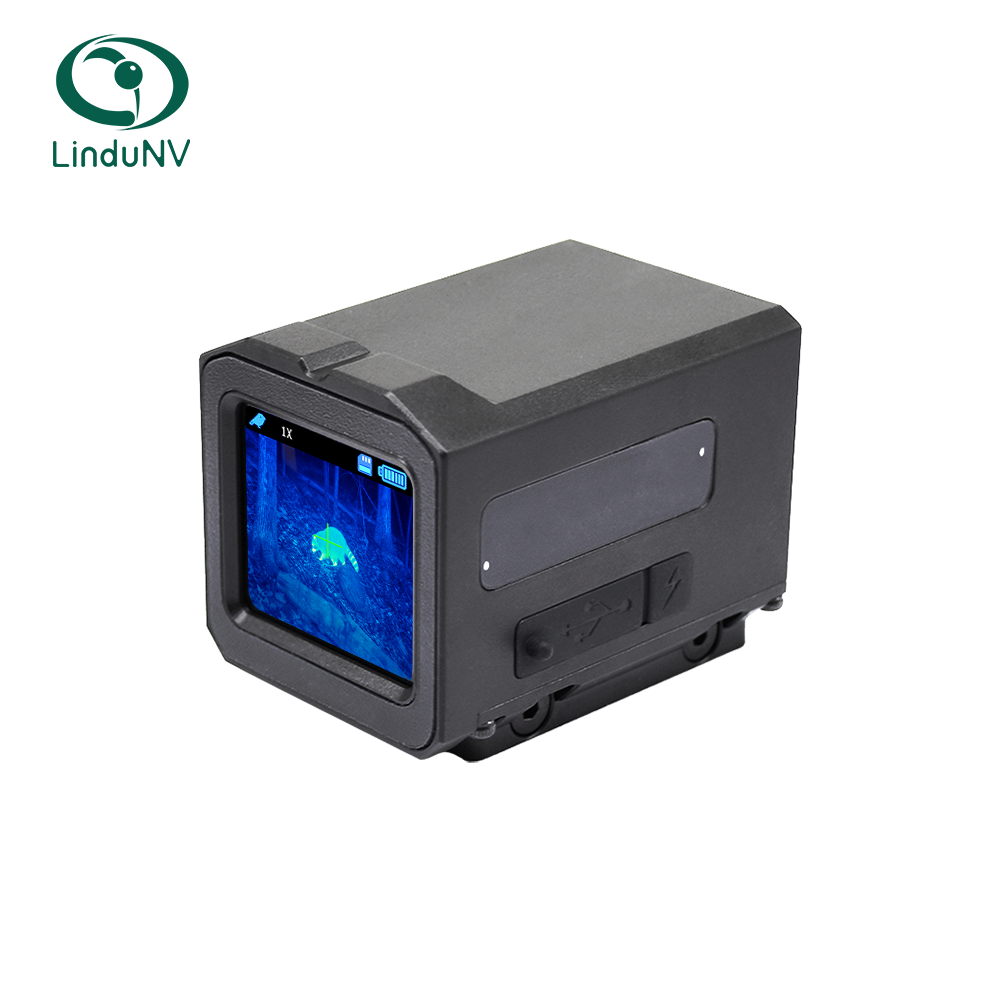

    5. 1.38-inch 400 × 400 touch display with video recording;

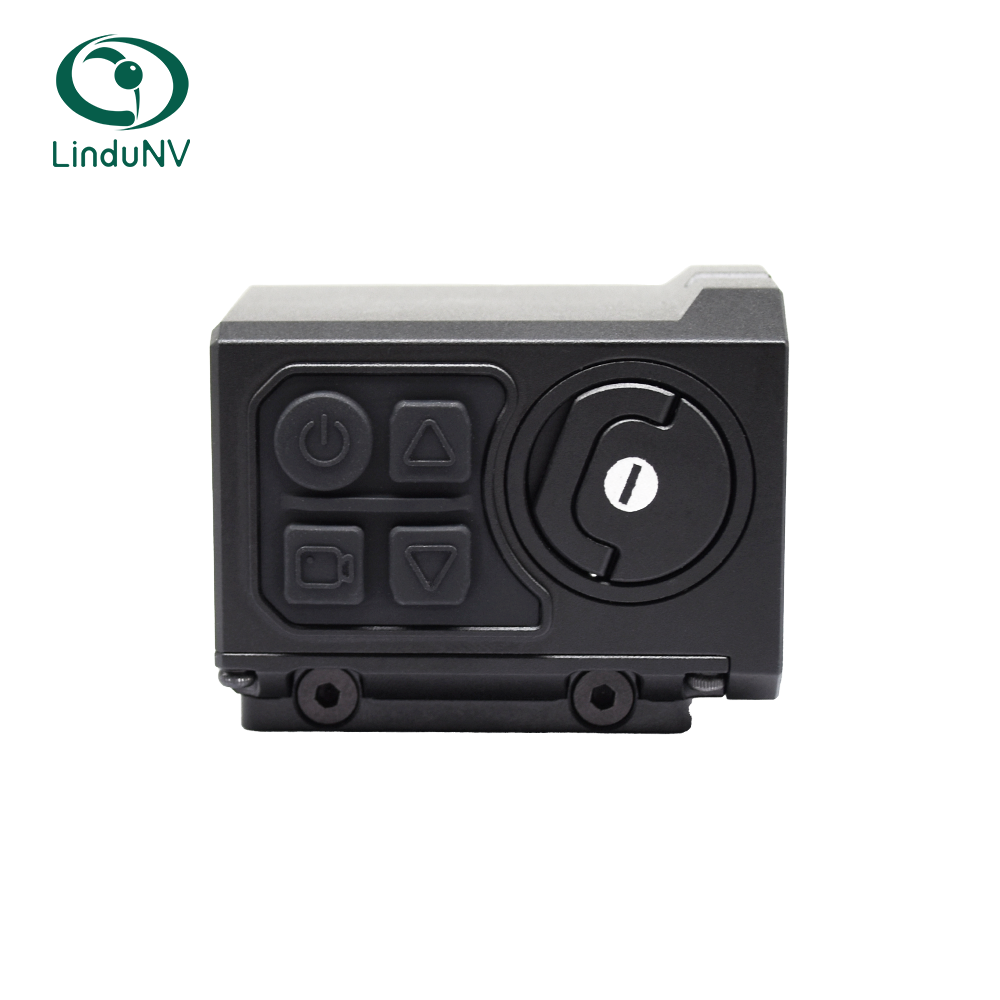

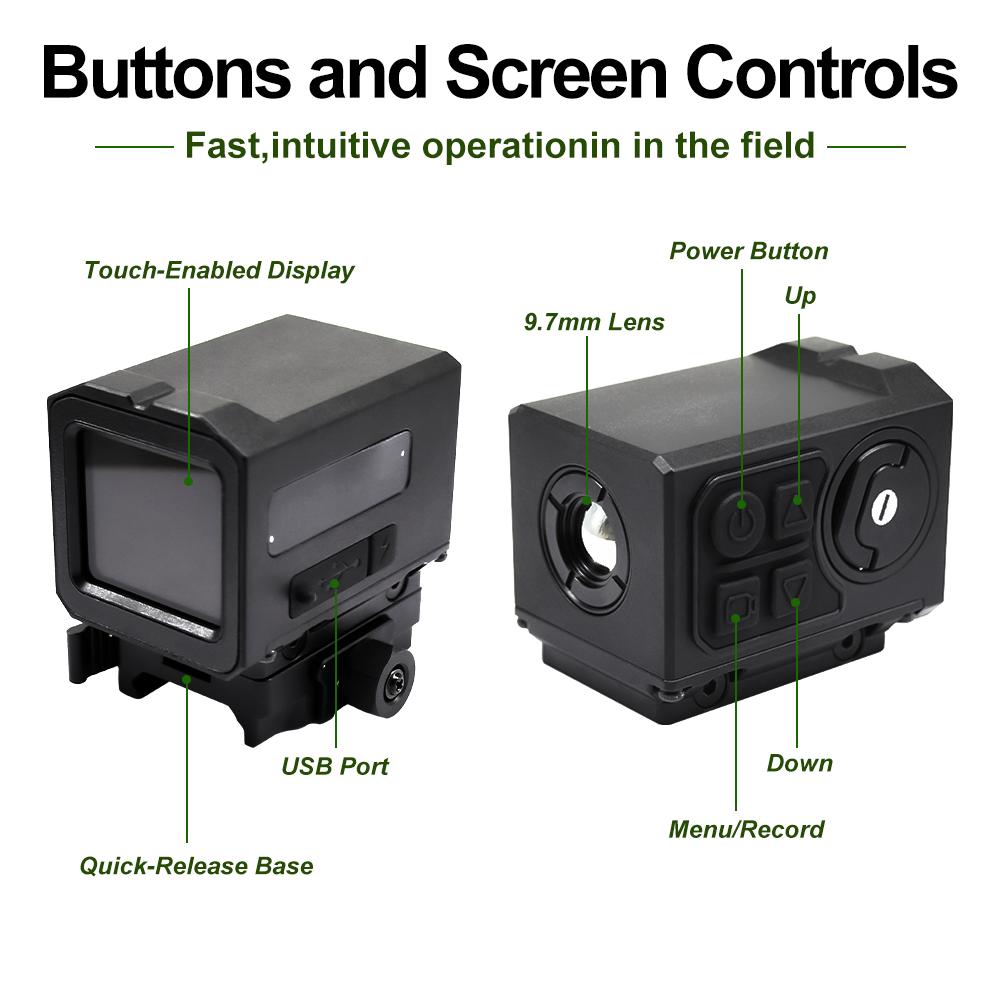

    6. Power, Up, Down and Menu/Record buttons; multilingual interface;

    7. USB-C 5V input, at least 1.5 hours of battery runtime, IP66 protection and quick-release base.
