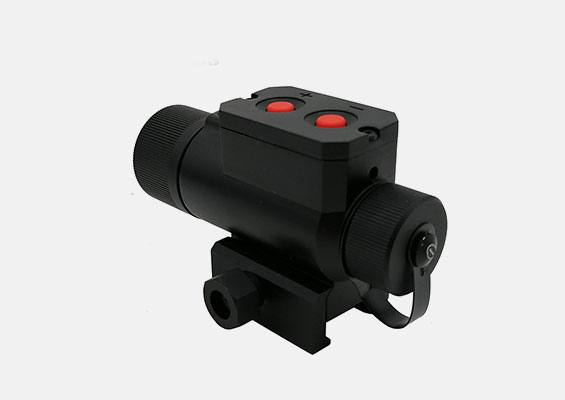

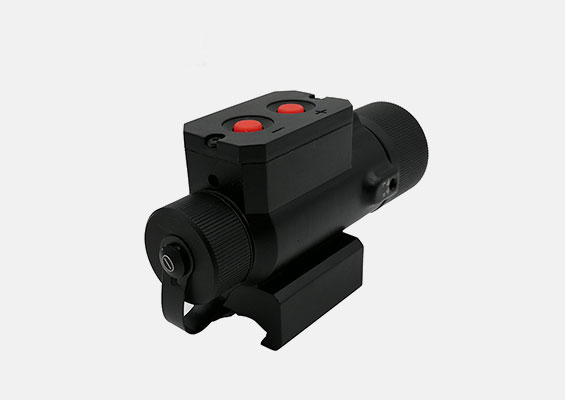

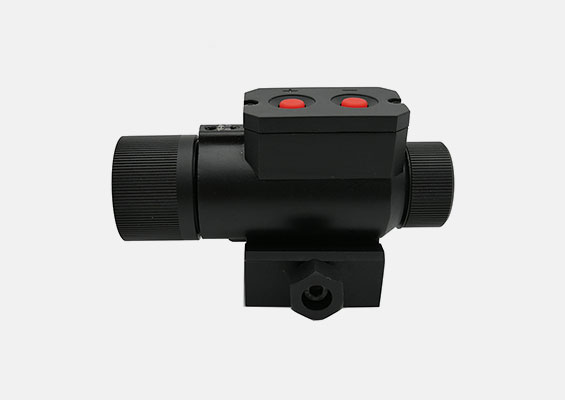

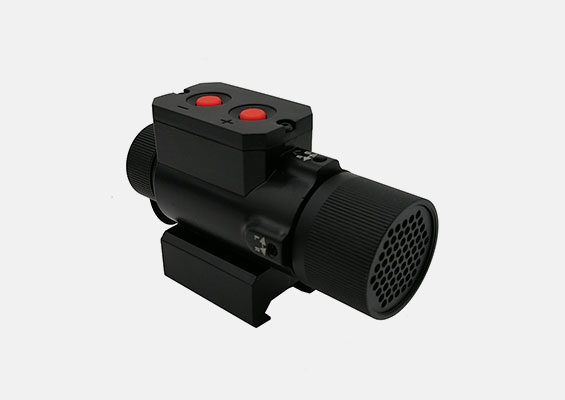

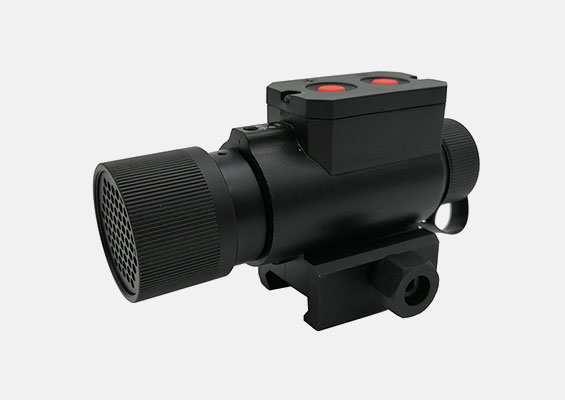

lr illuminator

  • MODEL:LDAS015
  • BODY COLOR: Black
  • SERVICE: OEM and ODM
  • CUSTOMIZE: LOGO and PACKING BOX
  • WARRANTY: 1 YEAR

This Sight use auxiliary illuminant products are specifically for sight use environment and the characteristics of the design. With small volume, light weight, high strength, easy installation and adjustment, uniform light, small power,brightness is adjustable, adjustable launch direction, irradiation distance, and good concealment. Ideal for military,police,outdoor hunting all black environments such as use with night vision sight.







MODLE LDIR8N LDIR9N LDIR8W LDIR9W
Light type Infra-red LED Infra-red LED Infra-red LED Infra-red LED
wavelength(nm) 850 940 850 940
Angle of irradiation 10° 10°
Light shape circular circular circular circular
Power(Max) 1.2W 1.2W 1.2W 1.2W
Light quality Adjustable Adjustable Adjustable Adjustable
Brightness level (Step) 11 11 11 11
Brightness control Keyboard Keyboard Keyboard Keyboard
Battery voltage 2.8-4.2V 2.8-4.2V 2.8-4.2V 2.8-4.2V
Battery Type CR123(A) CR123(A) CR123(A) CR123(A)
lrradiation distance >300M >300M >300M >300M
Battery quantity 1 1 1 1
Battery life ( Step6) 5H 5H 5H 5H
Direction adjust Up/Dn&R/L Up/Dn&R/L Up/Dn&R/L Up/Dn&R/L
Concealment Anti red nets Anti red nets Anti red nets Anti red nets
Mountting Standard fixture Standard fixture Standard fixture Standard fixture
Temperature ( ℃) -30~+50m -30~+50 -30~+50 -30~+50
Shock strength >1000G >1000G >1000G >1000G
Size (mm) 92x41x54 92x41x54 92x41x54 92x41x54
Weight (no battery) 145g 145g 145g 145g
Waterproof IP65 (IP67 OP.) IP65 (IP67 OP.) IP65 (IP67 OP.) IP65 (IP67 OP.)
Material Aviation aluminum Aviation aluminum Aviation aluminum Aviation aluminum
»
