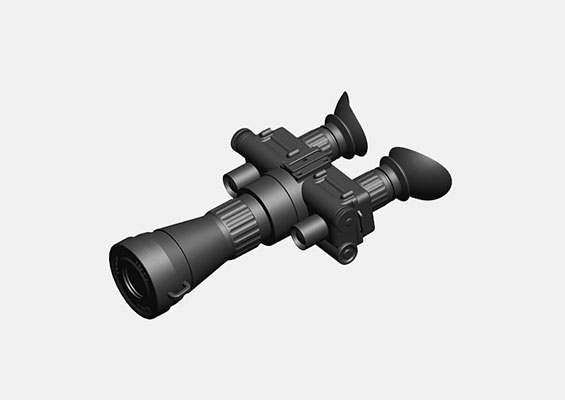

NVG 4X gen 2+&3 IIT

  • MODEL:LDNV003X4
  • BODY COLOR: Black
  • SERVICE: OEM and ODM
  • CUSTOMIZE: LOGO and PACKING BOX
  • WARRANTY: 1 YEAR

This model “single tube, dual eye” one of the most popular  Gen2+/ gen3 night vision goggles in industry. Fully adjustable, padded headgear allows the device to be flipped-up or quickly detached from the mask. They’re lightweight, fully submersible, rugged, precisely built and easy to use.



FEATURES

1. IP65 or IP67 waterproof;
2. Automatic shut off when flipped up;
3. No power consumption when in standby;
4. Embedded spring in battery’s cap;
5. Fully adjustable head mount;
6. Mil-spec multi-coated optic;
7. Automatic brightness control;
8. Bright source protection;



  • Image intensifier Gen2+/gen3
    Magnification 4X
    Resolution ( lp/mm) 45-57/51-57
    Photocathode S25/GaAs
    S/N (dB) 15-21/18-25
    Sensitivity 2850K(uA/lm) 450-500/500-600
    Life (H) 10,000
    FOV(degree) 40±3
    View distance(M) 450-500/500-550
    IPD range 60-70mm
    Diopter range ±5
    Optical system F1.4, 55mm  FL=70
    Lens coating Fully multilayer broadband coating
    Distance range(M) 5M–∞
    Auto anti strong light High sensitivity broadband detection
    Rollover detection Solid non-contact automatic detection
    Size(No eyeshade) 195x135x69mm
    Material Aviation aluminum
    Weight (no battery) 453g
    Battery Voltage 2.6-4.2V
    Battery type AA (2)
    Battery life(H) 80(IR OFF)    40(IR ON)
    Temperature range(℃) -40/+50
    Humidity range 5%-98%
    Waterproof IP65(IP67 optional)
»
