Products

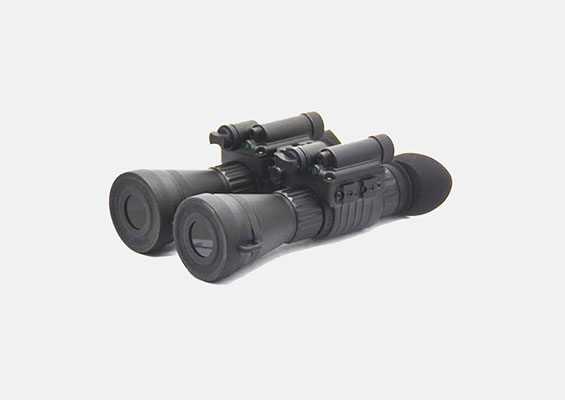

NVB 4×55 gen 2+&3 IIT

  • MODEL:LDNV005X4
  • BODY COLOR: Black
  • SERVICE: OEM and ODM
  • CUSTOMIZE: LOGO and PACKING BOX
  • WARRANTY: 1 YEAR

The Multifunction night vision series is a new product developed based on the latest electronic technology. The night vision series uses a high performance Gen2+/gen3  image intensifier. they has excellent performance, small size, light weight, clear imaging and simple operation. High cost performance. The magnification factor can be changed by  replacing the objective lens (or connecting magnifying lenses). The product can be connected to digital cameras, cameras and video cameras(built-in partition), with the  gun aiming fixture can be used for hanging guns or for individual use.



FEATURES

1. IP65 or IP67 waterproof;
2. Bright source protection;
3. Mil-spec multi-coated optic;
4. Automatic brightness control;
5. Fully adjustable head mount;
6. Embedded spring in battery’s cap;
7. No power consumption when in standby;

  • Image intensifier Gen 2+/gen 3
    Magnification 4X
    Resolution ( lp/mm) 45-57/51-57
    Photocathode S25/GaAs
    S/N (dB) 15-21/18-25
    Sensitivity 2850K(uA/lm) 450-500/500-600
    Life (H) 10,000
    View of angle(degree) 12+/-3
    View distance(M) 450-500/500-550
    Diopter range ±5
    Graduation cursor Internal(optional)
    Optical system F1.4, 55mm  FL=70
    Lens coating Fully multilayer broadband coating
    Distance range(M) 5–∞
    Auto anti strong light High sensitivity broadband detection
    Rollover detection Solid non-contact automatic detection
    Size(No eyeshade) 190x190x54mm
    Material Aviation aluminum
    Weight (no battery) 838g
    Battery Voltage 2.6-4.2V
    Battery type AA(2)
    Battery life(H) 80(IR OFF)    40(IR ON)
    Temperature range(℃) -40/+50
    Humidity range 5%-98%
    Waterproof IP65(IP67 optional)
»
