Products

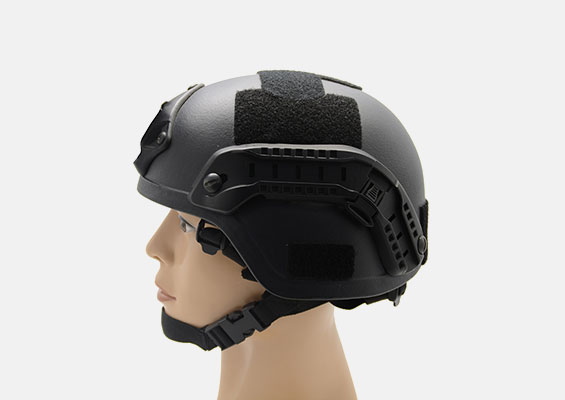

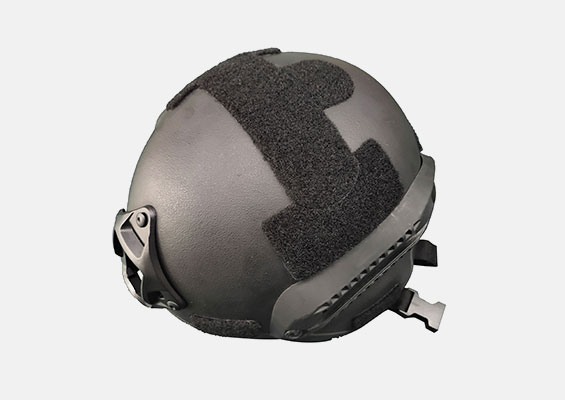

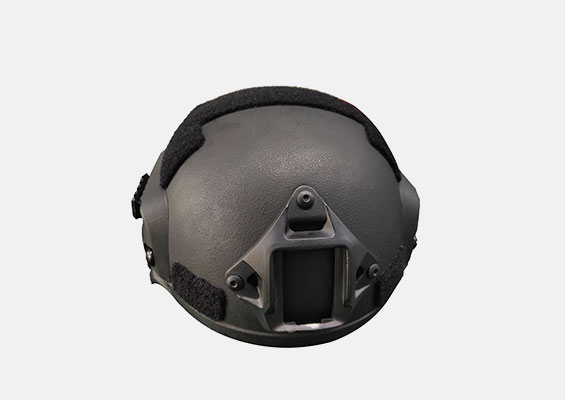

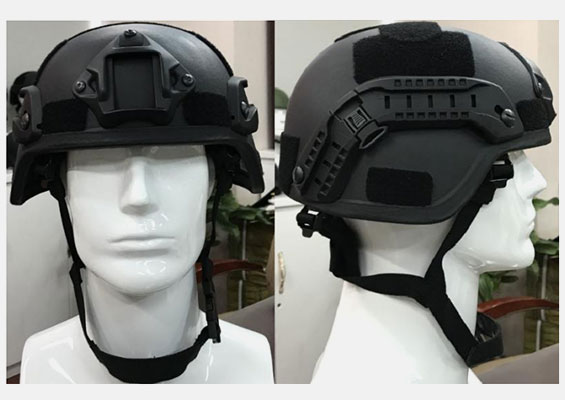

Ballistic helmet

  • MODEL:LDAS017
  • BODY COLOR: Black
  • SERVICE: OEM and ODM
  • CUSTOMIZE: LOGO and PACKING BOX
  • WARRANTY: 1 YEAR

The bulletproof helmet is made of imported Kevlar material, with a cushion, it is light and comfortable to wear, and has superior anti-elasticity performance. The surface coating of the helmet adopts the equipment imported from the United States to spray the overall environmental protection polyurea (polyurethane adhesive paint), which has the characteristics of wear resistance, high temperature resistance, no peeling of the paint layer, resistance to corrosion of various chemicals, ultraviolet light, and waterproof. Has excellent adaptability.

The ballistic performance of the product is in accordance with the “GA293-2012” police bulletproof helmet and face shield standard, “GA950-2011” bulletproof material and product V50 test method, and has passed ISO 9001-2008 quality management system certification, GJB9001B-2009 national military standard quality management system certification, The inspection report of the Special Police Equipment Quality Supervision and Inspection Center of the Ministry of Public Security can be issued, and the certificate of “Kevlar Protection Field Partner” authorized by DuPont China Group Co., Ltd. can be provided to certify that the bulletproof materials are authentic Kevlar materials.



Product technical features:



The exterior of the helmet shell is sprayed as a whole with a new environmentally friendly polyurethane adhesive paint. Compared with traditional spray paint, it has the advantages of being insensitive to temperature and humidity, good mechanical properties, outstanding aging resistance, and integrated coating, thereby avoiding the following phenomenons, such as helmet rubber strips happen glue opening because of temperature and humidity, paint peeling off after hitting the helmet.

  • Model FDK2F-AT04-L
    Helmet type MICH tactical type
    Material Kevlar
    Suspension Four-point chin strap fixed, seven modular pads
    Weight (±50g) ≤1.5kg
    Warranty Five years

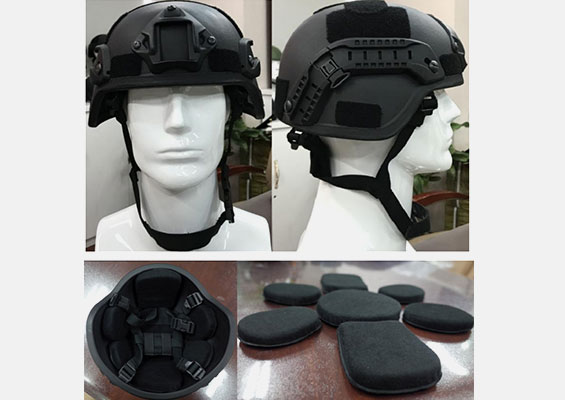

    Product structure It is composed of helmet shell and suspension buffer system. It adopts a four-point suspension system, which is firm, stable and ventilated.
    Protection level Public security level two
    Ballistic limit V50 value 676.5m/s
    Helmet shell lateral rigidity inspection Maximum deformation 3.5mm/residual deformation 2.6mm
    Flame retardant performance (continuous burning time on the outer surface of the helmet shell) ≤5s
    Maximum bullet mark height 12.5mm
    Anti-ballistic performance Use 54-type 7.62mm pistol and 51-type 7.62mm pistol bullets (lead core) to carry out post-shooting tests at room temperature, high and low temperature and resistance to water immersion, and the bulletproof layer meets the requirements.
»
