Products

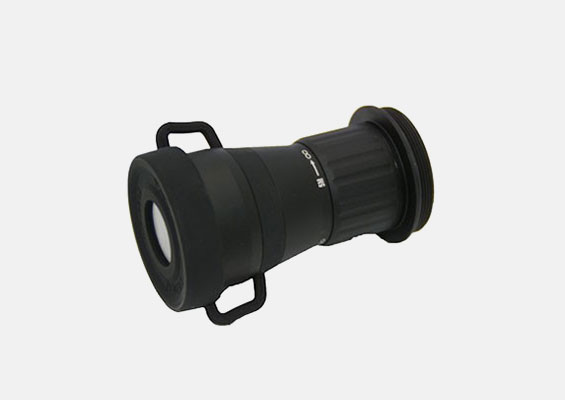

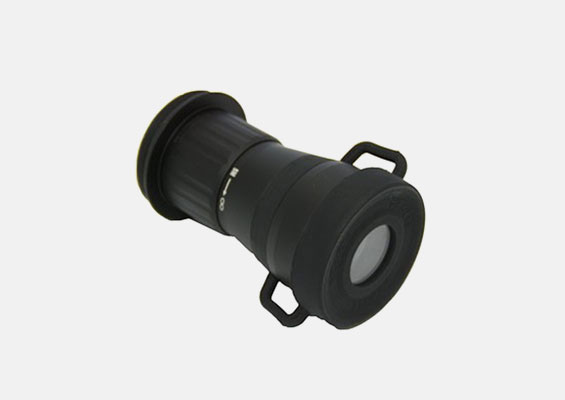

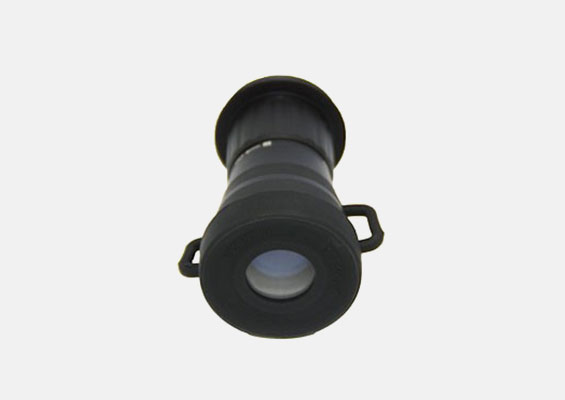

5X Objective lens(digital use)

  • MODEL:LDAS010
  • BODY COLOR: Black
  • SERVICE: OEM and ODM
  • CUSTOMIZE: LOGO and PACKING BOX
  • WARRANTY: 1 YEAR

LDAS010 digital objective lens is a high-performance universal objective lens. It can cooperate with CMOS imagesensors of various target surfaces to obtain high definition and low illumination environment images. t can beused in digital day and night rifle-scope lt has the advantages of low illumination, strong adaptability, highimaging quality, high multiplier, light weight, high cost performance and so on.

Product characteristics:

1.Good optical quality: high resolution, small distortion, large aperture, strong product adaptability.



2.Light weight, concise design and elegant appearance.

3.Variable aperture, cover the objective lens in the daytime, reduce the aperture, improve the image effect, openthe aperture at night, increase the aperture, improve the night vision effect.

  • 5X objective lens technical parameter
    Field of view(dge) 6-12
    Optical power 5X Φ42 FL=50
    Target surface 1/3-2/3时CMoS
    Relative Illumination 95%
    Optical aperture (objective lens) F1.3/2.6
    Optical MTF 150LP/mm
    Optical distortion 0.5%Max
    Range of focus 5M-oo
    Mode of focus Manual
    coating Multilayer Composite Ultra Wideband Blue Film
    material High Strength Aviation Aluminum
    Impact resistance >1000G
    Operating temperature -50–+80C
    Relative Humidity 5%-95%
    Environment rating IP65/IP67 ( optional )
    Dimensions 85x62x42
    weight 129g
»
