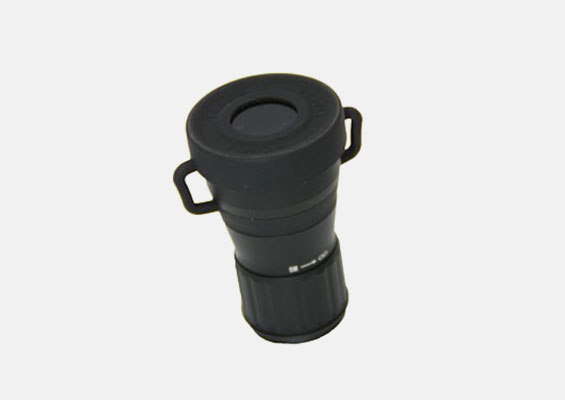

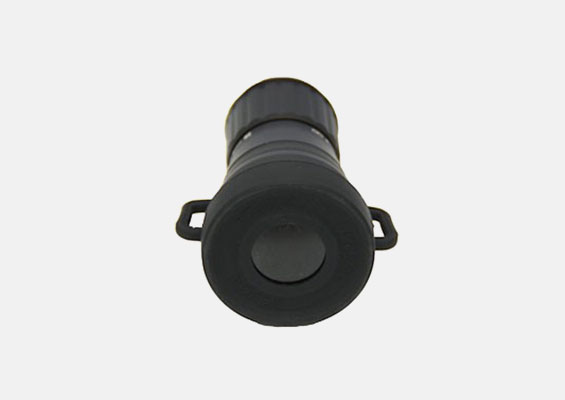

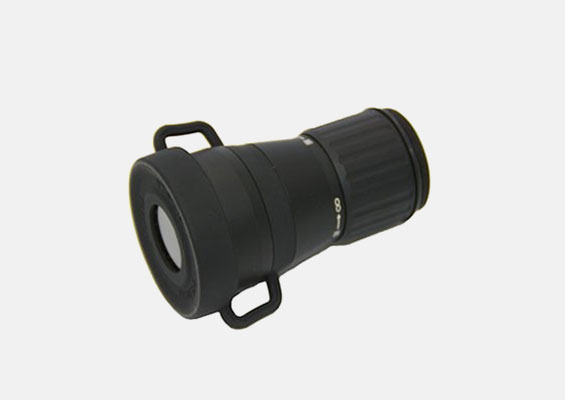

3X Objective lens(night vision use )

  • MODEL:LDAS007
  • BODY COLOR: Black
  • SERVICE: OEM and ODM
  • CUSTOMIZE: LOGO and PACKING BOX
  • WARRANTY: 1 YEAR

LDAS007 is a high-performance universal objective lens.It can cooperate with low-light image intensifier toobtain high-definition, low-illumination environmental images. It can be used for night vision products. lt has theadvantages of strong adaptability to low illumination, high imaging quality, high multiplier,light weight, high costperformance and so on.

Characteristics:

1.Good optical quality: high resolution, small distortion, large aperture, strong product adaptability.



2.The product is compact, light in weight, concise in design and elegant in appearance.

  • 3X objective lens technical parameter
    Field of view(dge) 40-45
    Optical power 1X Φ23 FL=24.5
    Target surface 16-17.5
    Relative Illumination 95%
    Optical aperture (objective lens) F1.18
    Optical MTF 10OLP/mm
    Optical distortion 1%Max
    Range of focus 0.25M-oo
    Mode of focus Manual
    coating Multilayer Composite Ultra Wideband Blue Film
    material High Strength Aviation Aluminum
    Impact resistance >800G
    Operating temperature -50–+80C
    Relative Humidity 5%-95%
    Environment rating IP65/IP67 ( optional )
    Dimensions 43x45x36
    weight 72g
»
