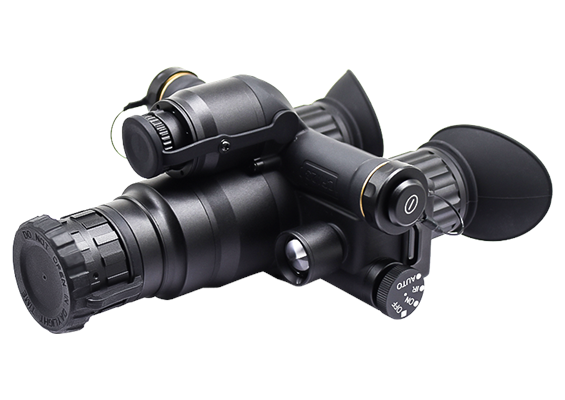

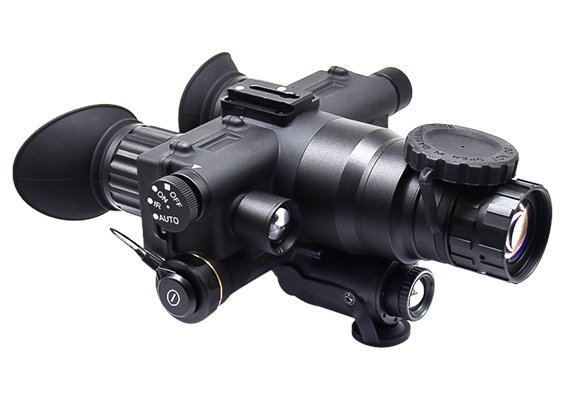

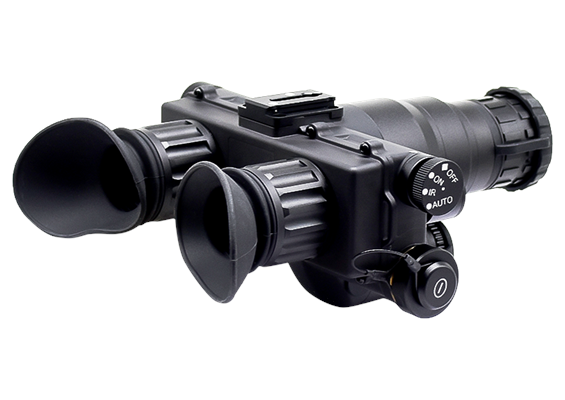

The LDNV003TH combines image-intensified night vision with an integrated thermal imaging module. Night vision and thermal imaging can be operated separately. The listed configuration features a Gen2+ FOM1400+ image intensifier and a 384 × 288 thermal detector. Optional video output and Wi-Fi transmission require the applicable configuration and accessories.
Five thermal display modes—White Hot, Black Hot, Green, Red Hot and Outline—can be selected with one-button control. Please confirm the phosphor and any optional configuration before ordering.
Main Features
1. Integrated image-intensified night vision and uncooled thermal imaging in one device.

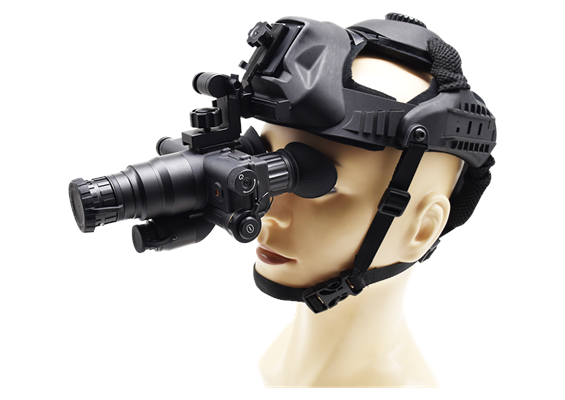

2. Aluminum-alloy housing with a compact, head-mounted design.
3. IP65 ingress protection; IP67 is an optional configuration.
4. Gen2+ FOM1400+ image intensifier in the listed configuration; confirm other tube options before ordering.
5. Flip-up/down automatic power control and ON / IR / AUTO switch modes.
6. Built-in 850 nm IR illuminator, IR indicator and low-battery indicator.
7. 384 × 288 thermal detector in the listed configuration; ask about availability of a 640 × 512 option.

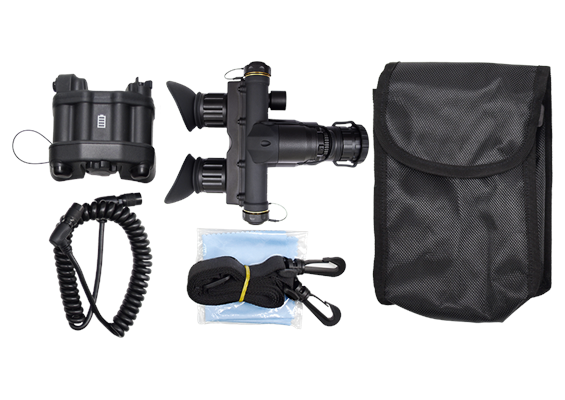

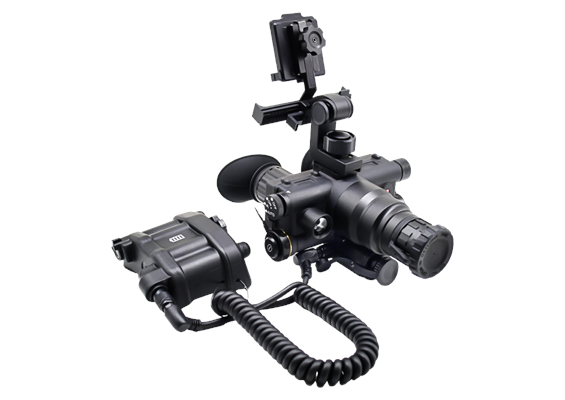

8. Supports an external battery pack powered by four CR123A batteries.
| Gen2+ Image Intensifier Tube | |
|---|---|
| FOM | FOM1400+ |
| SNR (dB) | 23–25 |
| Resolution (lp/mm) | 64–67 |
| Gain (cd/m²/lx) | 20,000 |
| Phosphor | P43 green or P45 white, depending on configuration; confirm when ordering |
| Electrical | |
| Main-unit battery | 2 × CR123A |
| External battery pack | 4 × CR123A |
| Switch modes | ON / IR / AUTO |
| Automatic function | Flip-up/down power control |
| IR illuminator | 850 nm, 20 mW |
| IR indicator | Yes |
| Low-battery indicator | Yes |
| Optical | |
| Magnification | 1× |
| FOV | 40° ± 2° |
| Optical distortion | 2% maximum |
| Diopter range | ±5° |
| Optical system | F1.2, 25 mm |
| Focus range | 0.25 m to infinity |
| Structure | |
| Focus type | Manual |
| Temperature range | −40°C to +55°C |
| Humidity range | 5%–98% |
| Ingress protection | IP65; IP67 optional |
| Dimensions | 115 × 127 × 69 mm |
| Weight | 510 g, excluding batteries |
| Thermal Imaging Module | |
| Sensor type | Uncooled infrared thermal sensor |
| Detector resolution | 384 × 288 in the listed configuration |
| Wavelength range | 8–12 µm |
| Objective lens | Fixed focus |
| Objective aperture | F1.0 |
| Brightness | Adjustable |
| Focusing distance | 250 mm to infinity |
| Image modes | White Hot / Black Hot / Green / Red Hot / Outline |
Configuration note: The specifications above describe the listed Gen2+ FOM1400+ and 384 × 288 configuration. Contact us to confirm the availability, specifications and pricing of other tube, phosphor or thermal detector options.
