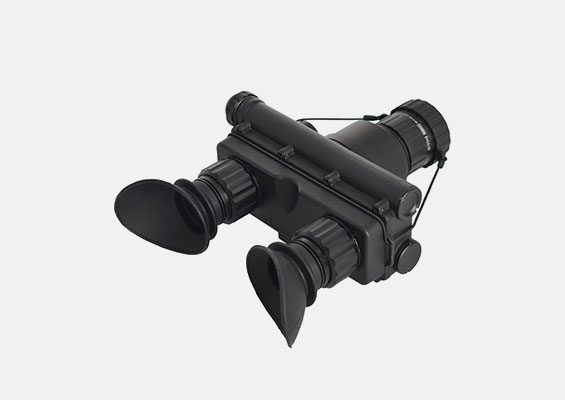

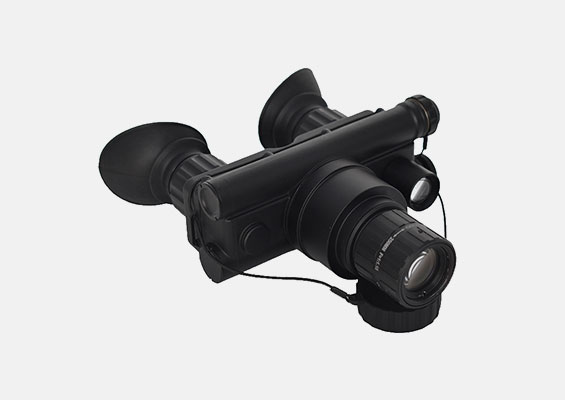

This LDNV003 (PVS-7 type) night vision goggle is based on the latest optelectronic technology. It uses high-performance gen2+ / gen3 image intensifier tube. It features clear imaging, video output, adjustable eye distance, and can change magnification by changing objective lenses (or connecting multiplier lenses-support 3X and 5X magnifier lenses ). This product can be adjusted arbitrarily with different eye distance requirements.

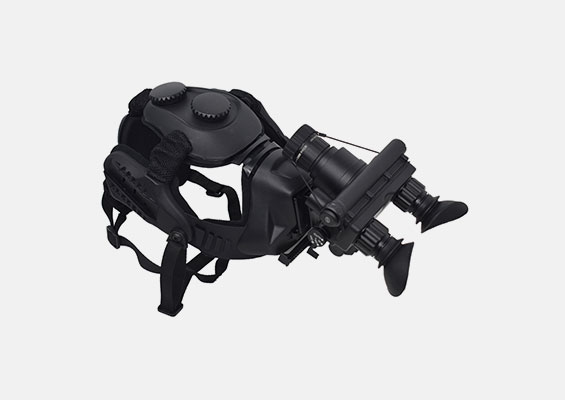

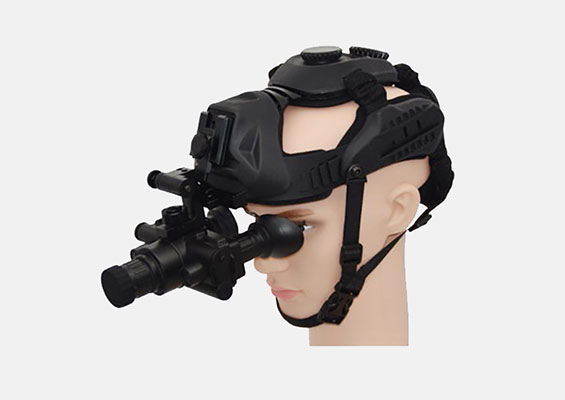

This product has strong practicability, using our LinduNV original customized mount to achieve “Flip up/down, auto shut off/on” function. Waterproof performance IP65-standard IP67-optional, no power consumption in standby mode. And it can be applied to military observation, frontier and coastal defense reconnaissance, public security surveillance, evidence collection, customs smuggling, etc. in the night without lighting.

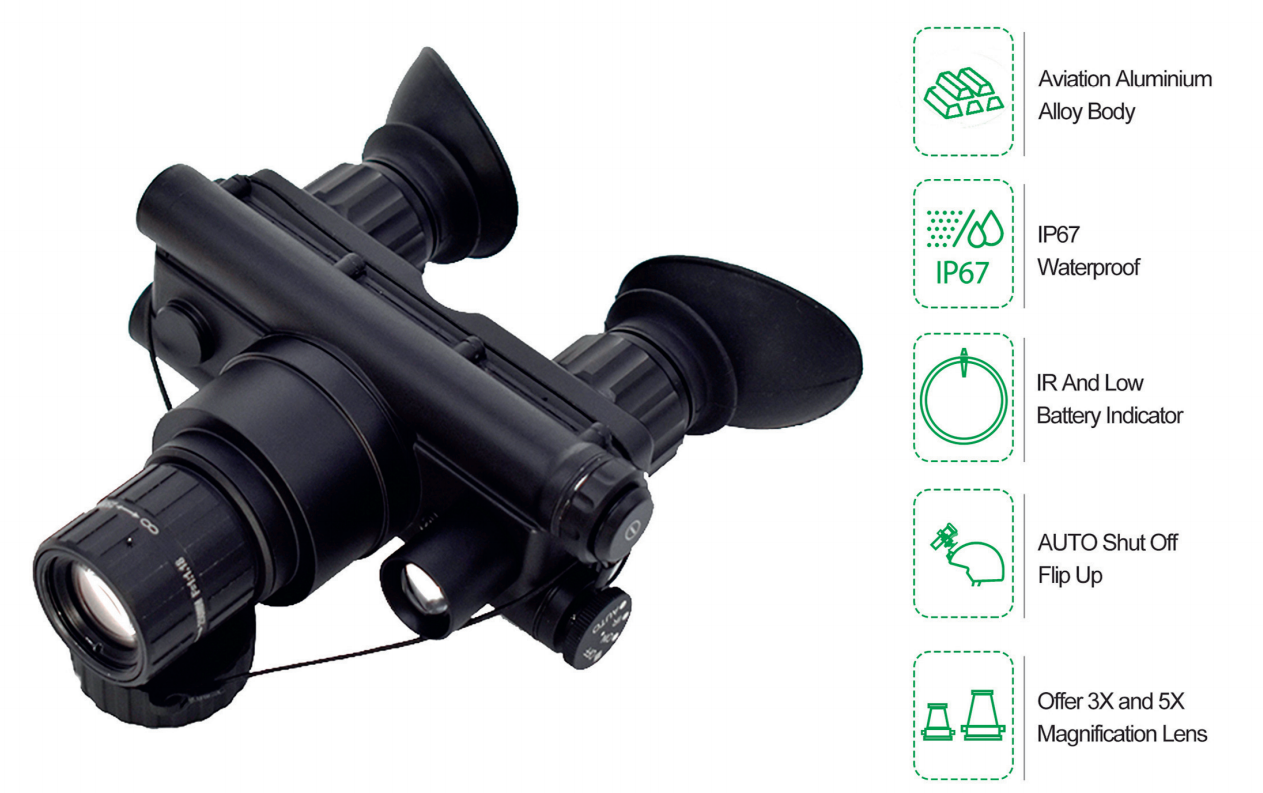

Main Features
1. IPD adjustable, range from 60-70mm;
2. Fully aluminum alloy body, high-strength fuselage structure, first choose for military use
3. Standard IP65 waterproof, IP67 optional;
4. Fit Gen2+ and Gen3 image intensifier tubes;
5. Auto function, flip up auto shot off, flip down auto turn on;
6. Build-in IR and low battery indicator;
7. Offer 3X and 5X magnifier lenses
| Gen2+ Image intensifier tube | ||
|---|---|---|
| FOM | FOM1200+ | |
| SNR(dB) | 20-22 | |
| Resolution(lp/mm) | 60-63 | |
| Gain(cd/m²/lx) | 20000 | |
| Phosphor | Green Phosphor P43 | |
| Electric | ||
| Battery type | AA | |
| Voltage range | 2.6-4.2V | |
| Switch model | ON/IR/AUTO | |
| Power | ＜0.1W | |
| Auto function | Filp up/down | |
| Working time | 60-100H | |
| IR illuminator | 850nm 20mW | |
| IR indicator | Yes | |
| Optical | ||
| Magnification | 1X | |
| FOV | 40+/-2° | |
| Optical distortion | 2% Max | |
| Diopter range | ±5° | |
| Optical system | F1.2 25mm | |
| Focus range(M) | 0.25–∞ | |
| Structure | ||
| Focus type | Manual | |
| Temperature range | -40–+55℃ | |
| Humidity range | 5%-95% | |
| Waterproof standard | IP65 | |
| Size | 130x130x69mm | |
| Weight | 393g(without battery) | |
* This product complies with MIL-STD-810G quality standards and is not subject to ITAR export control restrictions.
The full body made by high quality plastic military standard quality, the tubes easy to buy at North American and European, please send inquiry through below contact form, you will got reply in 12 hours. Thanks
