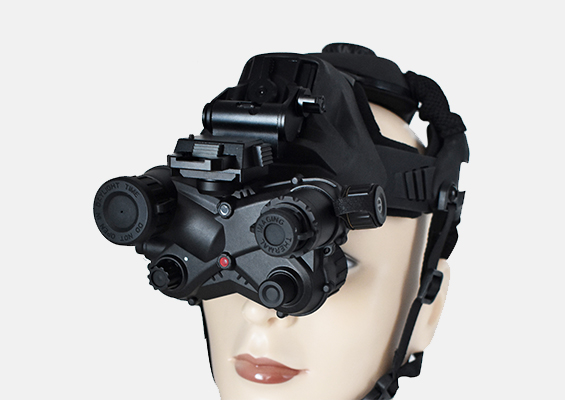

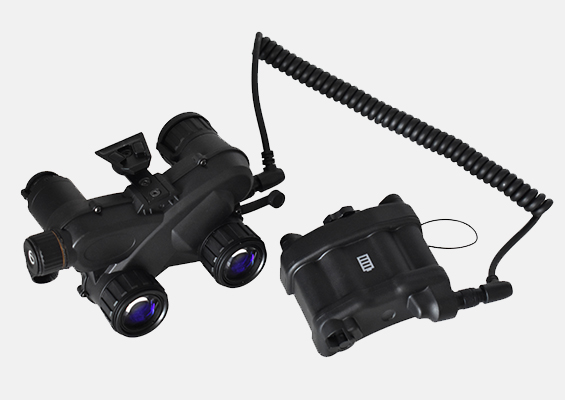

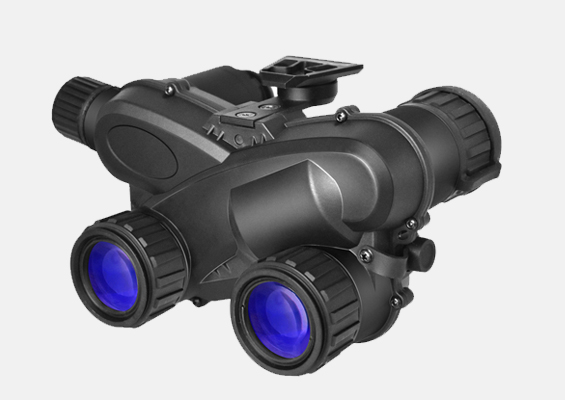

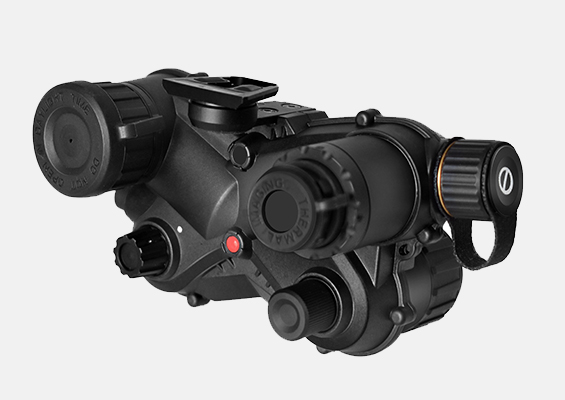

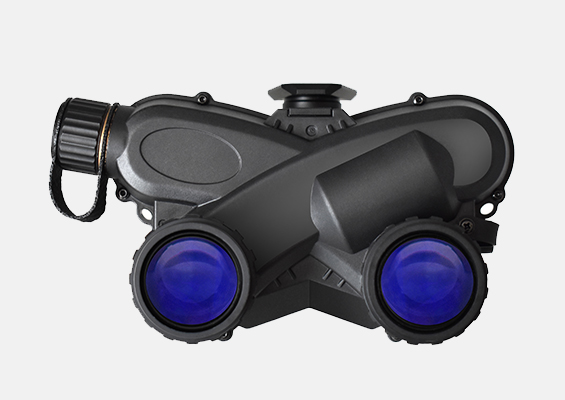

LinduNV’s LD-NVG22 night vision goggles is different from the LD-NVG22T night vision fusion thermal imaging goggles. It lacks thermal imaging function, but it is also a high-performance military night vision device.
It adopts a folded optical system to provide an ultra-wide 50-degree field of view, without distortion and fit for 36.7x31mm image intensifier tube. High strength (the overall performance is much better than the original version of the U.S. military products), which is the ideal choice for military night equipment.
| Gen2+ Image intensifier tube | ||||
|---|---|---|---|---|
| FOM | FOM1400+ | FOM1600+ | FOM1800+ | FOM2000+ |
| SNR(dB) | ≥23 | ≥25 | ≥28 | |
| Resolution(lp/mm) | ≥60 | ≥64 | ≥68 | |
| Gain(cd/m²/lx) | 8000-12000 | 12000-20000 | ||
| Gen3 Image intensifier tube | ||||
| FOM | FOM1200+ | FOM1400+ | FOM1600+ | FOM1800+ |
| SNR(dB) | ≥22 | ≥25 | ≥28 | |
| Resolution(lp/mm) | ≥51 | ≥55 | ≥60 | ≥64 |
| Gain(cd/m²/lx) | 8000-20000 | 11000-20000 | 12000-20000 | |
| Electric | ||||
| Battery type | CR123/AA | |||
| Voltage range | 1.5-4.2V | |||
| Switch model | ON/IR/AUTO | |||
| Power | ＜0.1W | |||
| Auto function | Filp up/down | |||
| Working time | 40-100H | |||
| IR illuminator | 850nm 20mW | |||
| IR indicator | Yes | |||
| Optical | ||||
| Magnification | 1X | |||
| FOV | 50±2°(Optional 40±2°) | |||
| Optical distortion | 1% Max | |||
| Lens coating | F1.18 22.5mm | |||
| Optical system | Fully multilayer broadband coating | |||
| Focus range(M) | 0.25–∞ | |||
| Eye relief | 30-35mm | |||
| Structure | ||||
| Temperature range | -40℃~+55℃ | |||
| Humidity range | 5%-95% | |||
| Waterproof standard | IP65 | |||
| Dimensions | 80x132x81mm | |||
| Weight | 450g | |||
* This product complies with MIL-STD-810G quality standards and is not subject to ITAR export control restrictions.
The full body made by high quality plastic military standard quality, the tubes easy to buy at North American and European, please send inquiry through below contact form, you will got reply in 12 hours. Thanks
